desktop form factor network appliance designed for entry-lev

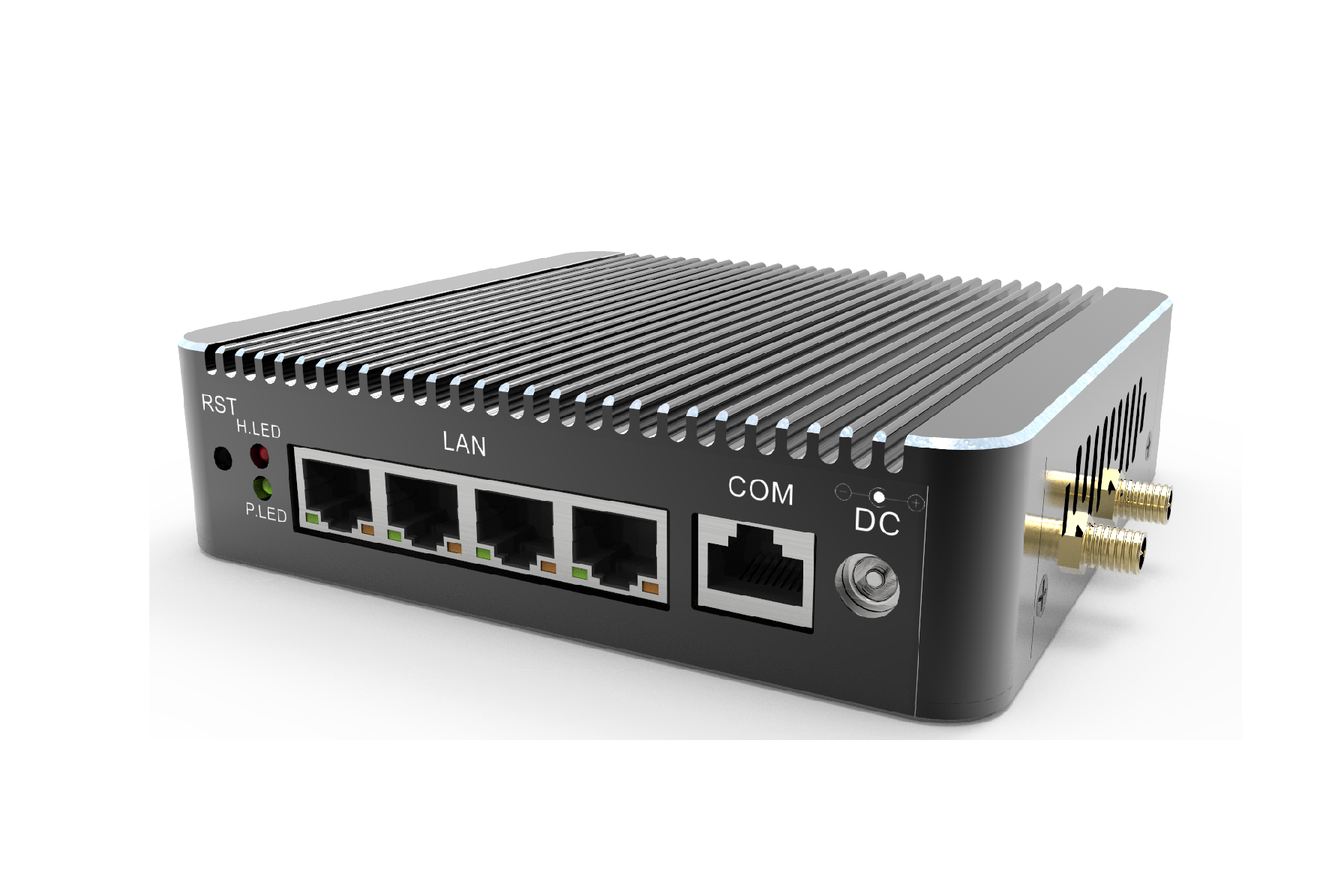

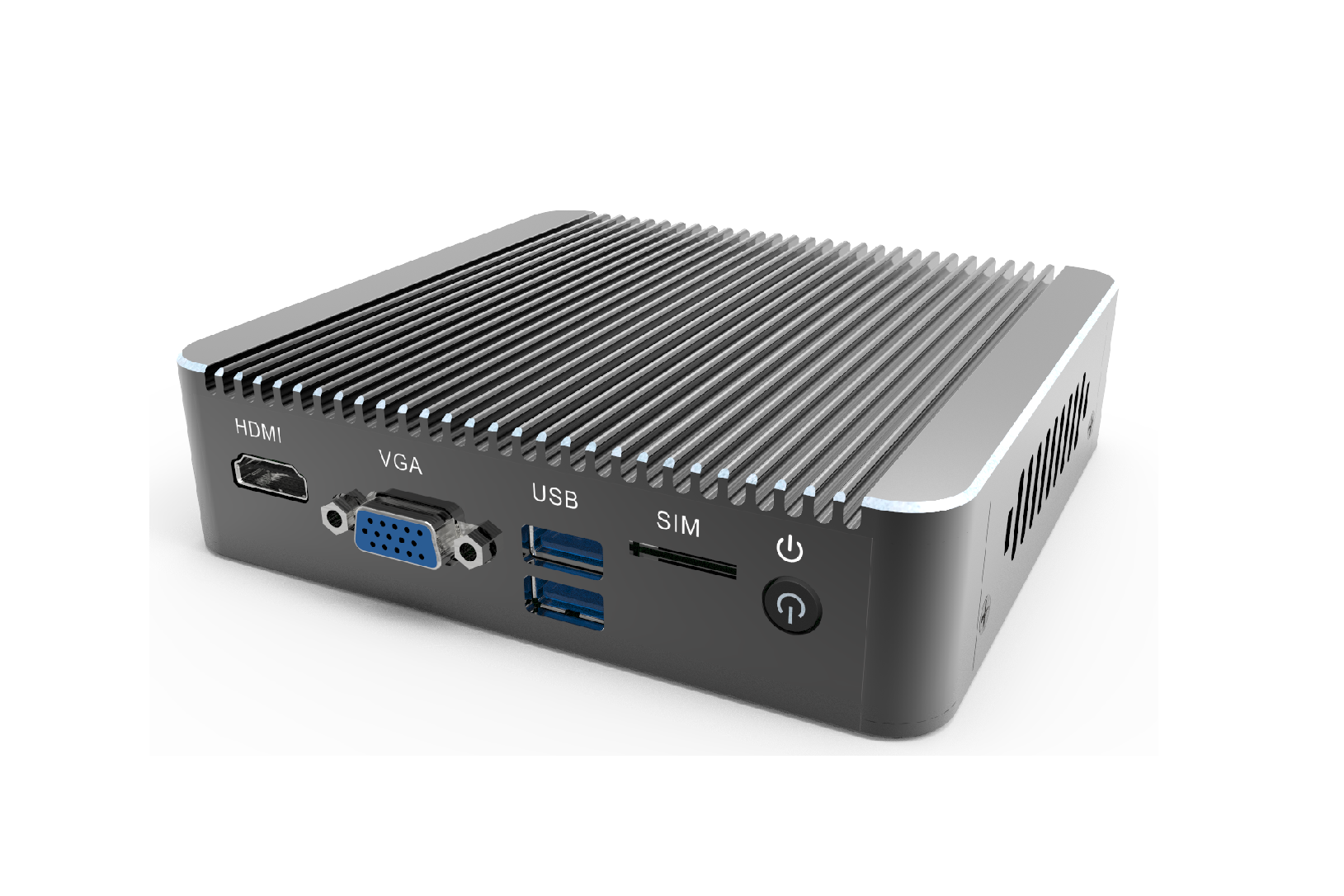

　　The NCC-BT41S2, powered by the Celeron J1900/J1800 (Codenamed Bay Trail) processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.

Powerful "heart", super strong performance, stable and reliable
Compact structure and flexible installation
Support 4G LTE module
Abundant interface design to meet different industries’ needs
Industrial grade workmanship, dustproof, adapt to all kinds of harsh environments
Low power consumption design, running consecutive 24 hours stably, low power consumption
Support dual display, high compatibility

Specification:                            NCC-BT41S2
Model No. NCC-BT41S2
Platform Processor Options Intel® Celeron® Processor J1900/J1800
Chipset N/A
BIOS AMI 64Mbit, support for PXE boot, Wake-on-LAN, Boot on Power, watchdog and etc.
System Memory Technology DDR3L 1600/1333 MHz
Max. Capacity 8 GB
Socket 1x SODIMM
Networking Chip Intel i211AT
WIFI Onboard 4x RJ45 Gigabit Ethernet
Storage Interface 1 x MSATA
1 x EMMC(optional）
I/O Interface USB 2 x USB 3.0
COM 1 x Console
LAN 4 x LAN
Power Button 1 x Power button
1 x DC interface
Display 1 x VGA
1 X HDMI
Display Chipset Intel® HD Graphics
Output VGA+HDMI display, dual display (synch/asynch display)
Watchdog Output   Interrupt, System Reboot
Interval 255 level timing space
Operating System Version Windows 7 / Windows 10 / Linux
Environmental Parameters Temperature 0℃～60℃/ -20℃～70℃
Humidity 5 ~ 90% non condensing
System Dimensions (WxHxD) 134mm x 126mm x 35mm
Power Type/Watts 36 W
Input DC 12V
Approvals and Compliance CE, FCC, RoHS

Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4    Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India
