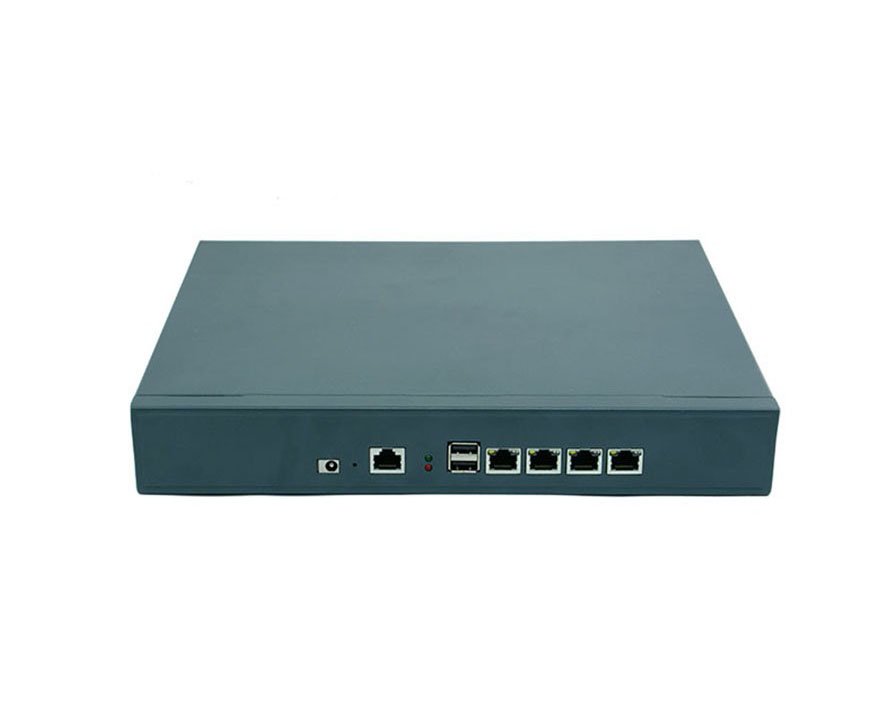

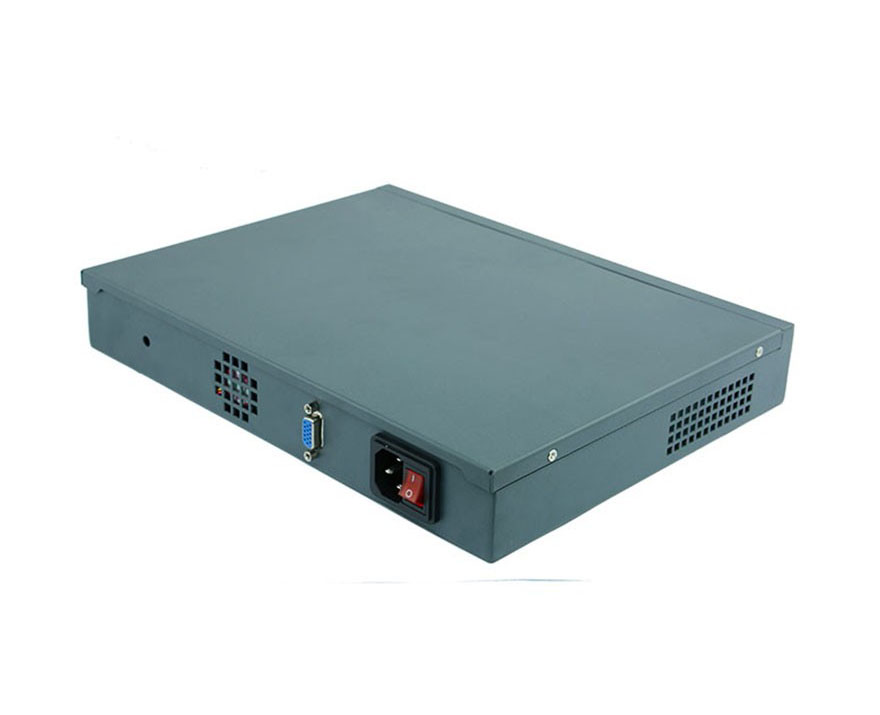

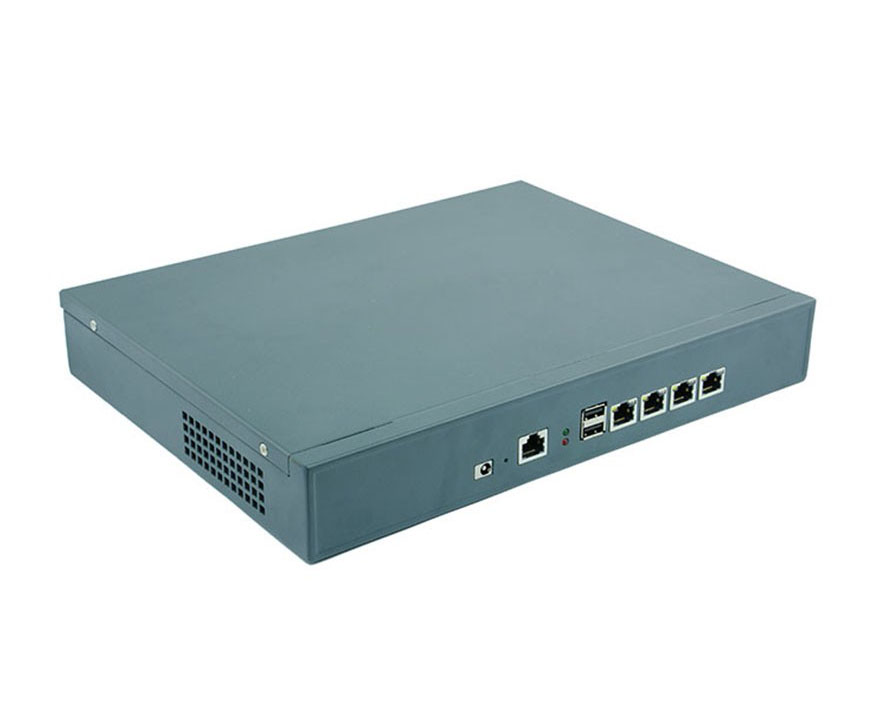

Intel Celeron J1900 Desktop 4x GbE RJ45 ports NCA-BT41
Integrated Intel Celeron J1900(2.0GHz) quad core or J1800(2.41GHz) dual core processor
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333 1.35V memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V/82574L GbE network, 1 pair BYPASS(NCA-BT41C)
1 x 12V-19V DC_JACK in
Mini ITX Form Factor(170mm x 170mm), fanless motherboard design
Thank you for choosing the NCA-BT41. The system is powered by the newest Intel Celeron J1900/J1800 Processors, codenamed Bay Trail, with the Intel SoC Series Chipset. It supports up to 8GB of DDR3L system memory at 1600MHz on single-channel DIMM banks. The NCA-BT41 is equipped with advanced I/O capacity which includes an RJ-45 console port, one mini PCIe slot (PCIe Generation 2.0), 1 Serial-ATA ports (comply with SATA Standard 2.0), 1 x notebook HDD slot, a mini SATA slot.
The onboard Ethernet ports be configured with bypass depending on the module specification.
Integrated Intel Celeron J1900(2.0GHz) quad core or J1800(2.41GHz) dual core processor
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333 1.35V memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V/82574L GbE network, 1 pair BYPASS(NCA-BT41C)
1 x 12V-19V DC_JACK in
Mini ITX Form Factor(170mm x 170mm), fanless motherboard design
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333 1.35V memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V/82574L GbE network, 1 pair BYPASS(NCA-BT41C)
1 x 12V-19V DC_JACK in
Mini ITX Form Factor(170mm x 170mm), fanless motherboard design
| Model No. | NCA-BT41 | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Celeron J1900 2.0GHz Quad Core / Intel Celeron J1800 2.41GHz Dual Core |
| CPU Socket | Onboard | |
| Chipset | Baytrail SOC platform | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3L 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204pin SODIMM | |
| Networking | Ethernet Ports | 4x GbE RJ45 Intel 82583V/82574L |
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x ATX Power switch, 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | - |
| Onboard Storage | 1x m-SATA | |
| Expansion | PCIe | - |
| Mini-PCIe | 1x Mini-PCIe | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | Passive CPU heatsink |
| System | 1x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 300x45x230mm |
| Weight | 2.0 kg | |
| Package Dimensions | (WxHxD) | 400x90x250mm |
| Weight | 3.0 kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
