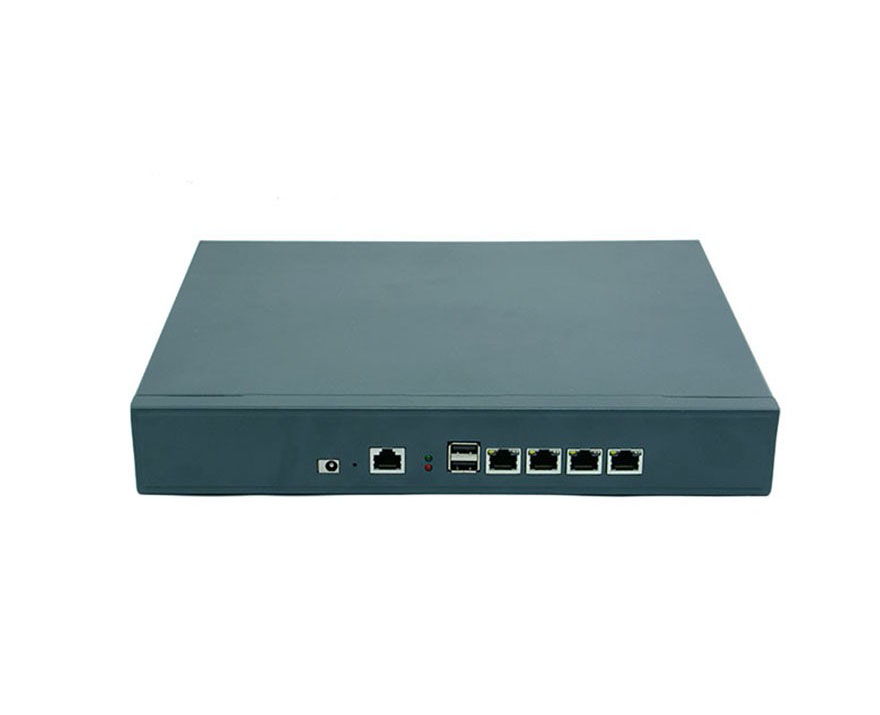

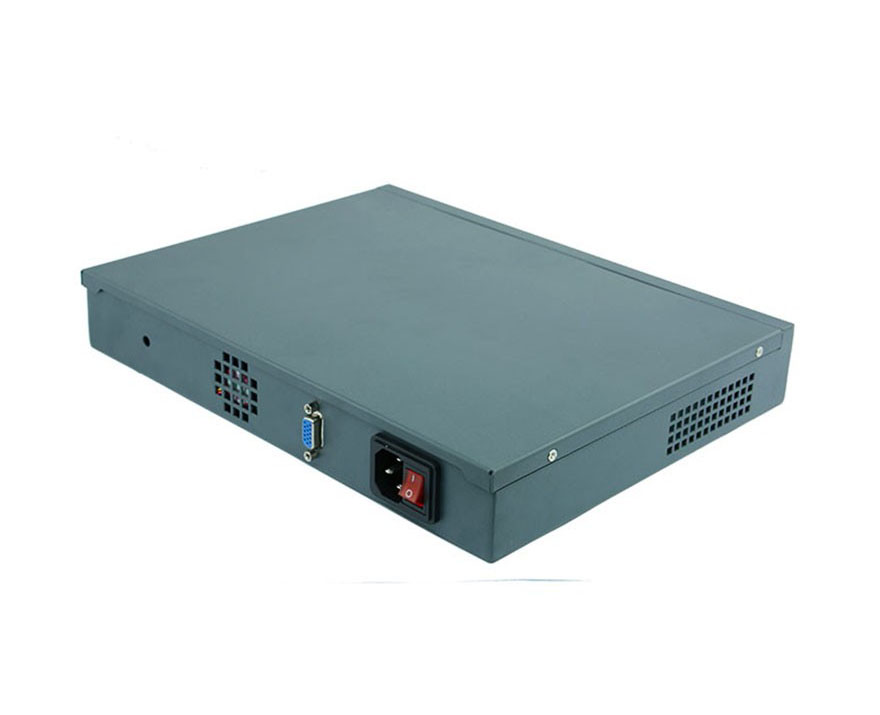

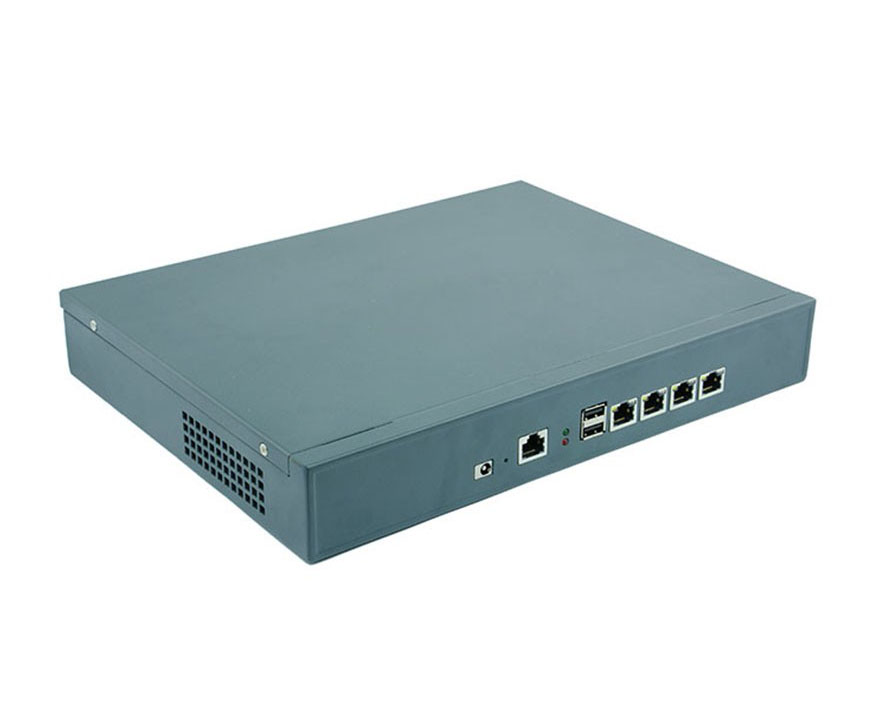

Intel Atom D525 desktop firewall PC 4 GbE
Onboard Intel Atom D525 dual core processor(1.80Ghz)
Deploy Intel Intel ICH8M express chipset
Supports DDRIII SO DIMM memory, Max. 4GB
Integrated with 4*Intel 82583V GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports
Supports 2 USB 2.0 headers
Supports SSD, SATA HDD storage
Thank you for choosing the NCA-8M41. The system is powered by the newest Intel Atom D525 Processors, codenamed Pineview, with the Intel ICH8M Series Chipset. It supports up to 4GB of DDR3 system memory at 1066MHz on single-channel DIMM banks. The NCA-8M41 is equipped with advanced I/O capacity which includes an RJ-45 console port, one mini PCIe slot (PCIe Generation 2.0), 2 Serial-ATA ports (comply with SATA Standard 2.0), a mini SATA slot.
The onboard Ethernet ports be configured with bypass depending on the module specification.
The onboard Ethernet ports be configured with bypass depending on the module specification.
Onboard Intel Atom D525 dual core processor(1.80Ghz)
Deploy Intel Intel ICH8M express chipset
Supports DDRIII SO DIMM memory, Max. 4GB
Integrated with 4*Intel 82583V GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports
Supports 2 USB 2.0 headers
Supports SSD, SATA HDD storage
Deploy Intel Intel ICH8M express chipset
Supports DDRIII SO DIMM memory, Max. 4GB
Integrated with 4*Intel 82583V GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports
Supports 2 USB 2.0 headers
Supports SSD, SATA HDD storage
| Model No. | NCA-8M41 | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Atom D525 1.80GHz Dual Core |
| CPU Socket | Onboard | |
| Chipset | ICH8M | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3 1066/800MHz |
| Max. Capacity | 4GB | |
| Socket | 1x 204pin SODIMM | |
| Networking | Ethernet Ports | 4x GbE RJ45 Intel 82583V/82574L |
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x ATX Power switch, 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | - |
| Onboard Storage | 1x m-SATA | |
| Expansion | PCIe | - |
| Mini-PCIe | 1x Mini-PCIe | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 1x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 300x45x230mm |
| Weight | 2.0 kg | |
| Package Dimensions | (WxHxD) | 400x90x250mm |
| Weight | 3.0 kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
