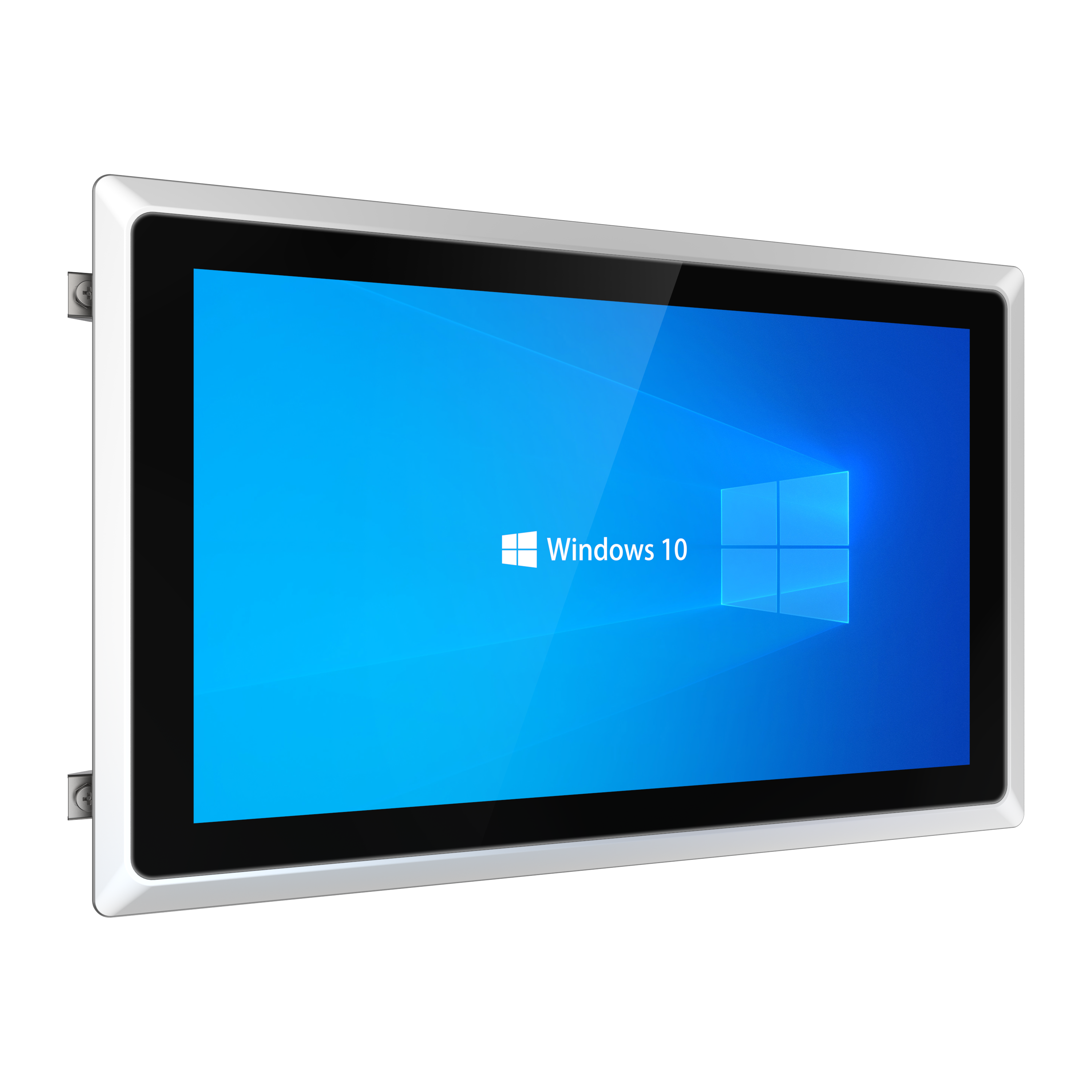

Armortec 15.6 inch 1235U 1335U processors Industrial touch panel embedded pc with Capacitive G+G touch

　　

15.6 inch TFT LED industrial capacitive all in one touch Panel PC with embedded touch screen  RJ45 USB for CNC Controller


Feature:
◆Made of all-aluminum alloy die-casting, with tempered glass on the surface;
◆Adopt Industrial class 6:9 widescreen design with a resolution of 1920*1080;
◆The display screen has a capacitive G+G solution, 10-point touch high accuracy, fast response, and optional resistive touch screen;
◆Fanless design, dustproof, shockproof and silent;
◆Integrated Intel 6/7/11/12/13/14th Gen low power processors;
◆Support 2.5-inch hard disk or M.2 Key M SSD installation;
◆Standard 2 COM (optional 6COM),1 x RJ45 ethernet port(optional 2xRJ45);
◆Standard 2 USB 3.0 ports;
Specification
Model No.
XPC-156WCEA

Platform
Processor Options
Integrated Intel 6/7/11/12/13/14th Gen mobile CPU
Chipset
SOC
RAM
4G/8G/16G (Configurable and SKU dependent)
Display Interface
1*HDMI interface

I/O Interface

switch surface interface
 1*HDMI / 2*USB3.0 / 2*Gigabit LAN / 2*COM(can be increased to 6COM) / 1*power switch
1*2-in-1 audio interface / 1*2PIN Phoenix power input socket / 1*Remote-SW-remote switch
Hard drive
Provides 1*M.2 M Key 2280(NVME PCIeX4/SATA SSD adaptive)slot,or 1 *2.5'' hard drive installation slot
LCD
15.6 inches: 1920*1080 resolution; MTBF: 50000 hours, brightness 300cd/m optional

Touchscreen
Capacitive G+G touch solution/10-point touch, response time<8ms, touch accuracy ≦2mm, Resistive
touch optional.
Extension
1* M.2 KeyE 2230 slot (supports WIFI+Bluetooth module), optional GPIO*1 (10PIN)

Chassis Parameters
Features
Aluminum alloy high-strength frame and cover
Material
high quality aluminum alloy + steel plate
Thermal design

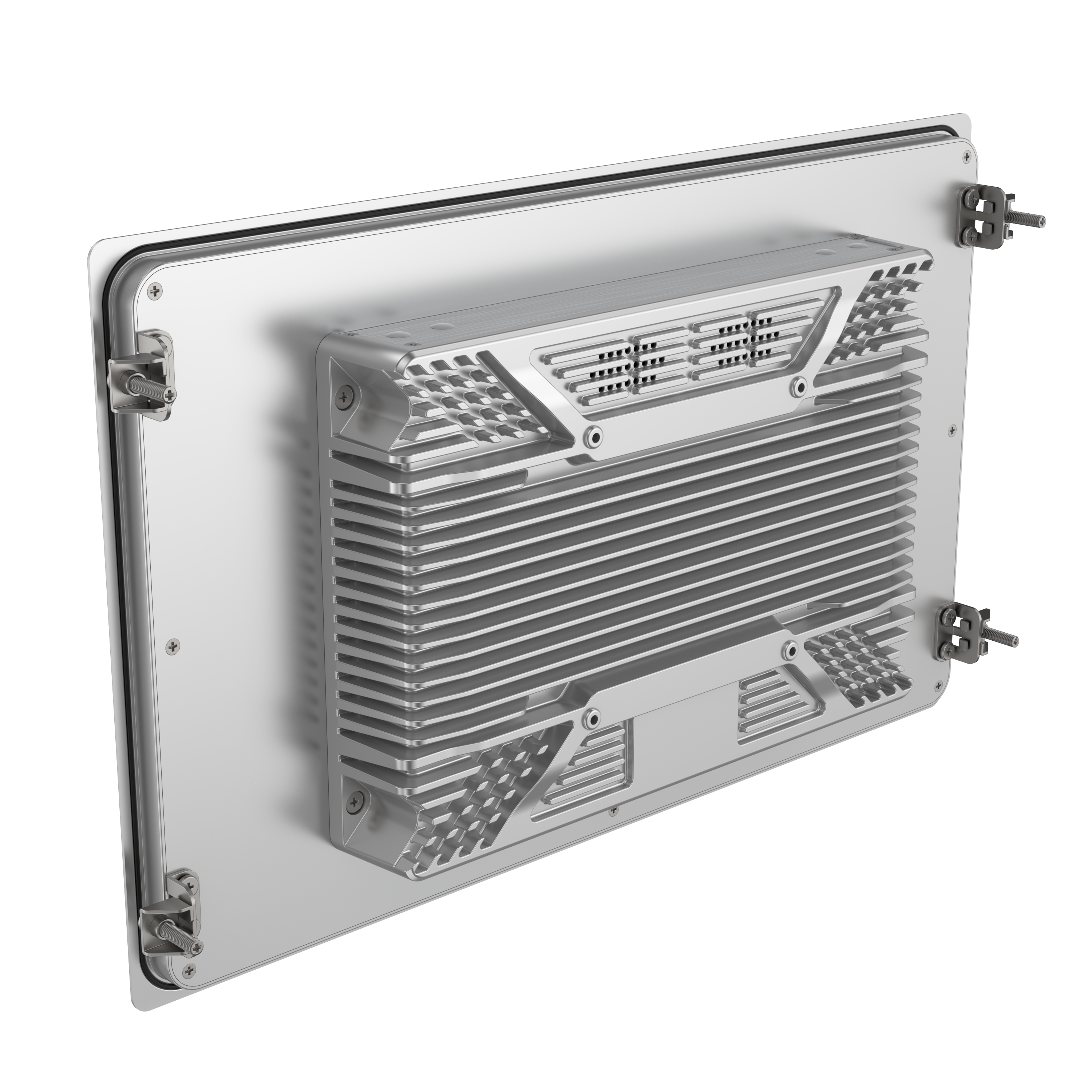

fanless passive cooling
Operating Humidity
10% - 95% @40°C non-condensing
Work Environment
-10°C~ 60°C (-4°F~149°F)
Storage Environment
-40°C~ 80°C (-40°F~176°F)
Power
DC12V input, Upgradable to 9~36V wide voltage input
Installation
Embedded / Wall Mount / Desktop Bracket
Size(W*H*D)
TBD mm( Naked）
Weight (kg)
net weight≈ 4.5 KG / gross weight≈ 5.0 KG
Boot method
Switch start, support automatic start when
incoming call
Operating system
6/7th Gen: Windows7/10/11/Linux
11/12/13/14th Gen：Windows11/Linux
