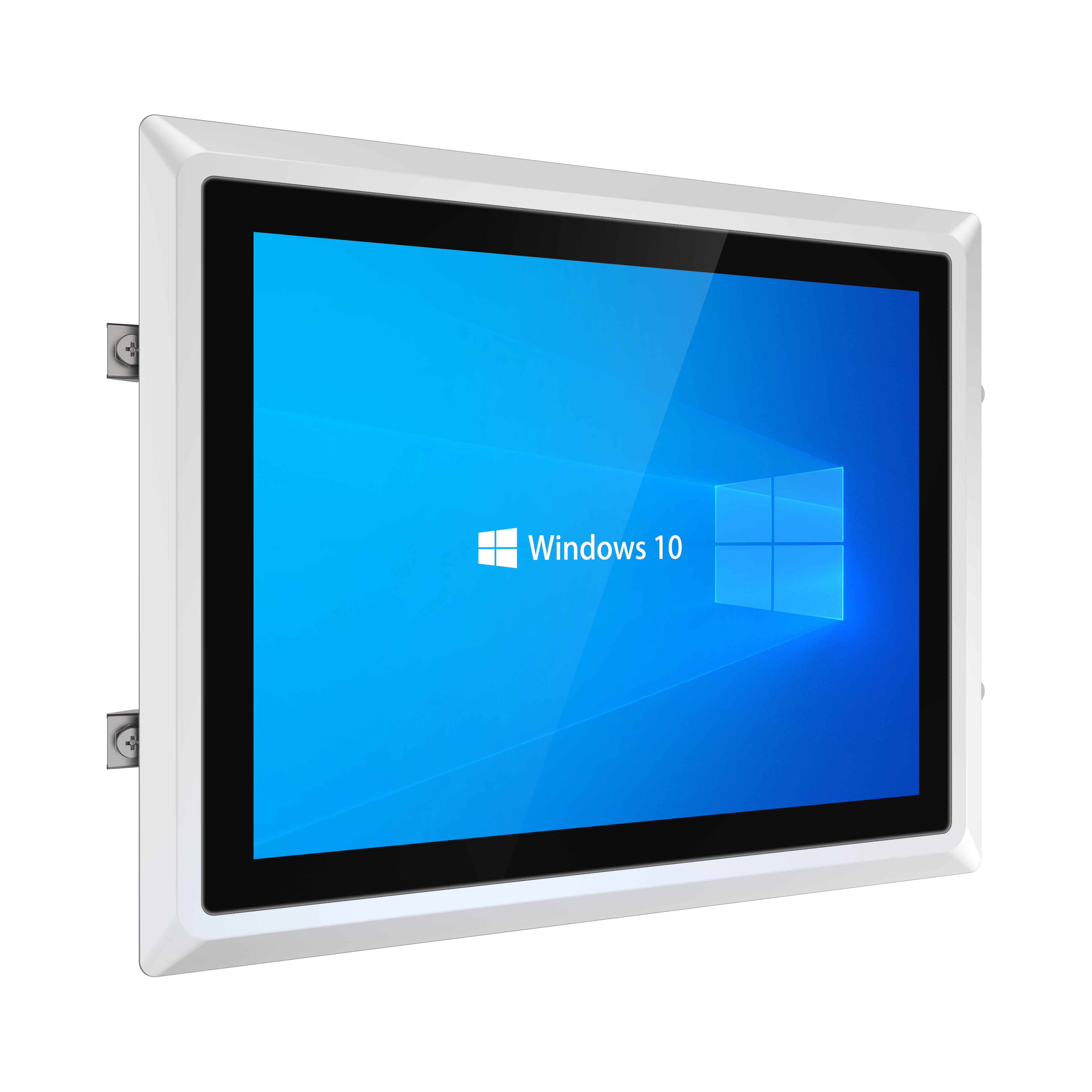

Armortec Hot selling 12.1 inch All in one Fanless Industrial touch screen panel pc with Intel 7200U processors

　　

12.1 inch TFT LED industrial capacitive ip65 waterproof all in one touch industrial pc with embedded touch screen hmi VGA RJ45






Feature:
◆Made of all-aluminum alloy die-casting, with tempered glass on the surface;
◆Adopt Industrial class 4:3 positive screen design with a resolution of 1024*768;
◆The display screen has a capacitive G+G solution, 10-point touch high accuracy, fast response, and optional resistive touch screen;

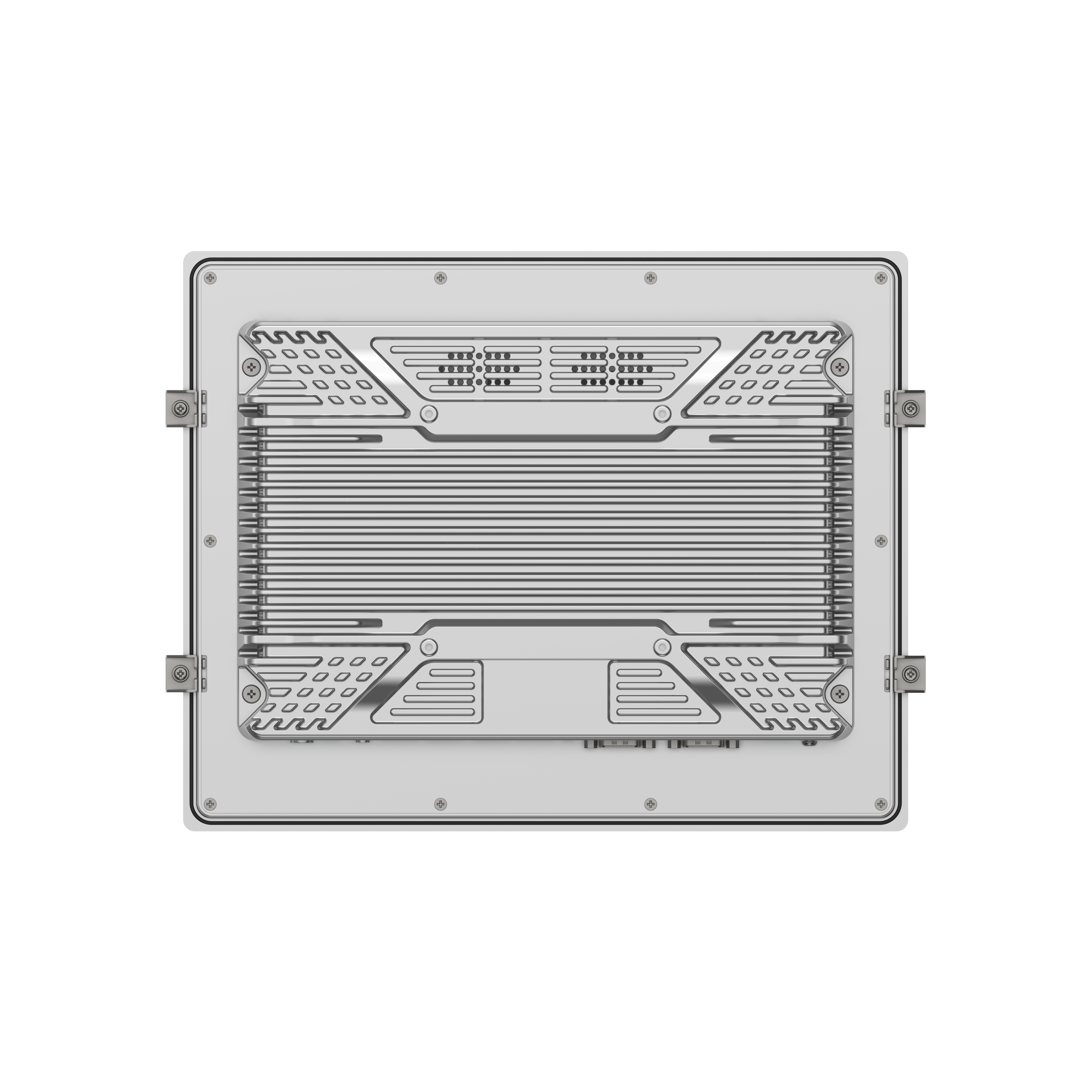

◆Fanless design, dustproof, shockproof and silent;
◆Integrated Intel 6/7/11/12/13/14th Gen low power processors;
◆Support 2.5-inch hard disk or M.2 Key M SSD installation;
◆Standard 2 COM (optional 6COM),1 x RJ45 ethernet port(optional 2xRJ45);
◆Standard 2 USB 3.0 ports;
Specification
Model No.
XPC-121SCEA

Platform
Processor Options
Integrated Intel 6/7/11/12/13/14th Gen mobile CPU
Chipset
SOC
RAM
4G/8G/16G (Configurable and SKU dependent)
Display Interface
1*HDMI interface

I/O Interface

switch surface interface
 1*HDMI / 2*USB3.0 / 2*Gigabit LAN / 2*COM(can be increased to 6COM) / 1*power switch
1*2-in-1 audio interface / 1*2PIN Phoenix power input socket / 1*Remote-SW-remote switch
Hard drive
Provides 1*M.2 M Key 2280(NVME PCIeX4/SATA SSD adaptive)slot,or 1 *2.5'' hard drive installation slot
LCD
12.1 inches: 1024*768 resolution; MTBF: 50000 hours, brightness 300cd/m optional

Touchscreen
Capacitive G+G touch solution/10-point touch, response time<8ms, touch accuracy ≦2mm, Resistive
touch optional.
Extension
1* M.2 KeyE 2230 slot (supports WIFI+Bluetooth module), optional GPIO*1 (10PIN)

Chassis Parameters
Features
Aluminum alloy high-strength frame and cover
Material
high quality aluminum alloy + steel plate
Thermal design
fanless passive cooling
Operating Humidity
10% - 95% @40°C non-condensing
Work Environment
-10°C~ 60°C (-4°F~149°F)
Storage Environment
-40°C~ 80°C (-40°F~176°F)
Power
DC12V input, Upgradable to 9~36V wide voltage input
Installation
Embedded / Wall Mount / Desktop Bracket
Size(W*H*D)
TBD mm( Naked）
Weight (kg)
net weight≈ 4.0 KG / gross weight≈ 4.5 KG
Boot method
Switch start, support automatic start when
incoming call
Operating system
6/7th Gen: Windows7/10/11/Linux
11/12/13/14th Gen：Windows11/Linux
