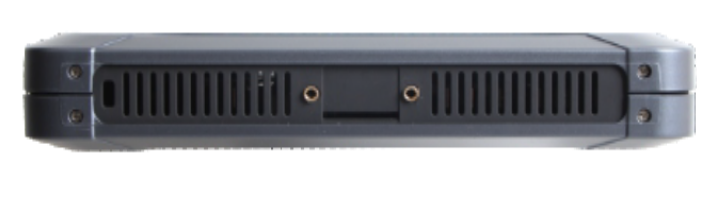

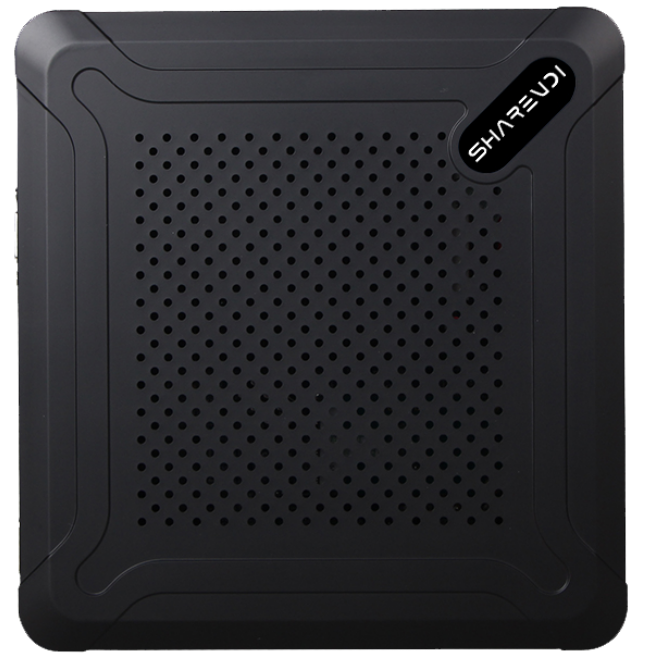

Fanless MINI PC with Intel Core i5 4th generation(4200U or a



　　









K5 Specification
CPU Intel Core i5 4th generation(4200U or above)
Chipset Haswell-UL
Caches 3MB
Instruction Set 64-bit
Core Dual-core 4 threads
CPU frequency 1.6-2.6GHZ
Memory 2G/4G/8G/16G DDR3L(1 slot only)
SSD/HDD SSD 16G/32G/64G/128G/256G/512G/1T
  HDD 500G/1T/1.5T/2T(SATA only)
Graphics Intel HD Graphics 4400
Intel HD Graphics EU 20
Graphics Frequency 200-1100Mhz
WIFI modem Optional
Bluetooth Optional
3G modem supported NO
LAN Realtek RTL8111E 100/1000Mbps Adaptive
AUDIO Realtek ALC662 Two-channel stereo
I/O RJ45*1,USB2.0*4,USB3.0*2,MIC&SPK*1,VGA*1,HDMI*1,COM *1
2.5''SATA YES
CPU consumption//TDP 15W
DC IN 100-240V
DC OUT 12V/3A-5A
OS Windows 7/8/10/LINUX
Net weight of machine 0.5KG
Casing Material Black color and Plastic
VESA mount supported Optional




















Packing Details
NO Item Name
1 Machine
2 12V/3A-5A Power Adapter
3 Warranty Card
4 User Manual
5 Bracket (Optional Vesa Mount)
6 Screws
