NUC-R19FZ

Fanless cooling design
All alumninum chassis, compact structure, flexible installation
1 x VGA display output
4 x GbE LAN, supports Wake-On-LAN
Abundant I/O: 1 xCOM, 1 x VGA, 4x LAN, 1 xUSB3.0 , 2x USB2.0

　　
Fanless cooling design
All alumninum chassis, compact structure, flexible installation
1 x VGA display output
4 x GbE LAN, supports Wake-On-LAN
Abundant I/O: 1 xCOM, 1 x VGA, 4x LAN, 1 xUSB3.0 , 2x USB2.0
Model No. NUC-R19FZ
Motherboard Processor Integrated Intel® Celeron® Processor J1900 2.0GHz Quad Core Processor
Chipset SoC
Display Graphic card Integrated Intel® HD Graphics
Resolution VGA Max Resolution ratio：2560x1600@60HZ，
Storage Memory 1* DDR4 SODIMM memory slot, Max. 1600MHz, Max supports 8GB
SATA N/A
CF N/A
SSD 1* M.2 slot, supporting M.2 2242 standard SSD
eMMC N/A
Network Ethernet 4* Intel WG82583V GbE NIC controller, supporting Wake-on-LAN and PXE boot
WIFI N/A

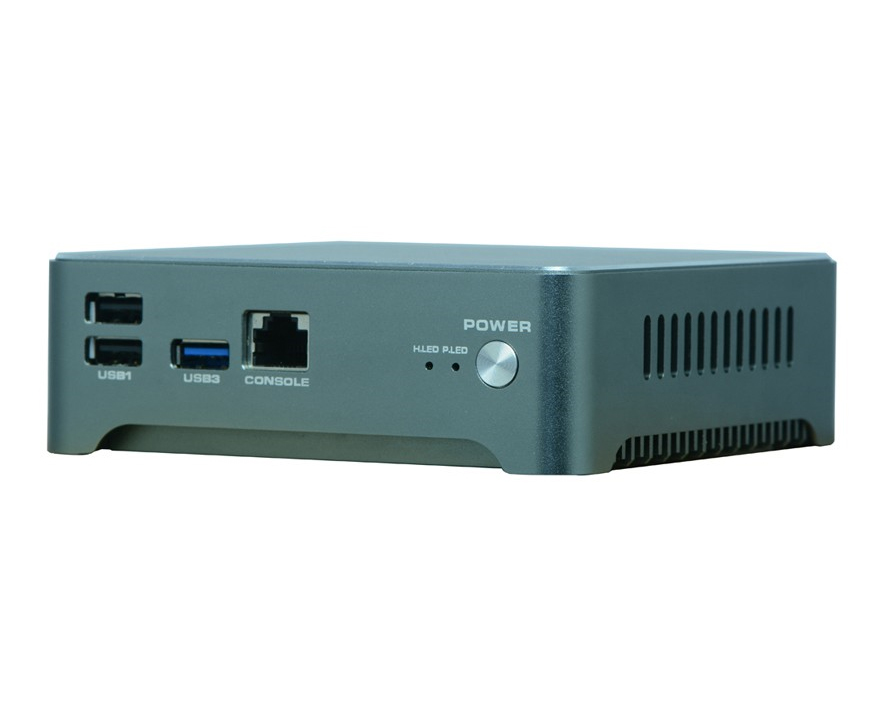

  Console 1* CISCO standard console port
USB 2* USB2.0接口, 1*USB3.0接口
Power Switch 1* 电源开关
LED 1*HDD LED,1*POWER LED
LAN 4* RJ45 GbE Ethernet Ports

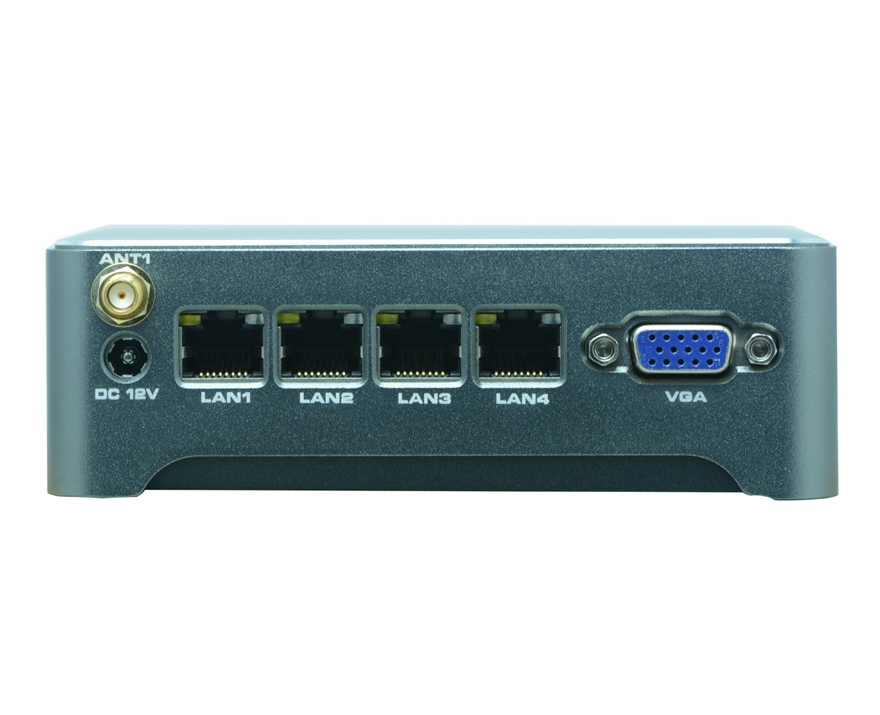

Rear I/O Display Connector 1* VGA
USB 2*USB 2.0 ports
Power 1* 12V DC input port
Antenna N/A
Audio 1* Line-out,1* MIC
Operating System   Supports Windows 7, Windows 8, Windows 10, Linux, etc.
Power Supply Input AC 110V~ 220V
Output DC 12V/3A
Type Desktop Adapters
Chassis Color Iron Grey
Dimension 128mm*128mm*41mm（L*W*H）
Structure Fanless structure
Material Aluminum alloy
Installing Method Desktop or Wall Mount
Reliability Working Temperature 0℃～45℃
Storage Temperature -20℃～70℃
Relative Humidity 5%-95% Relative Humidity, non-condensing
Working Vibration 0.5g rms/5-500HZ/random/operating
Ordering Information
No. Part number processor motherboard RAM Hard dish LAN USB WIFI Adaptor system
1 R19FZ J1900/2.00GHz R19F / / 4*WG82583V 3 N/A 12V/3A /
Packing List
1 Desktop Adapter x 1
2 Power cord 3P 180cm, China x 1
3 VESA bracket x 1
4 Accessory screw bag
Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4 Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India
