NUC-35C3Z

Fanless cooling design
AI alloy chassis, compact structure, flexible installation
1xVGA,1xHDMI, support VGA+HDMI independent dual display
2 x Gigabit Ethernet port, supports Wake On LAN
Rich I/O: 1xDC_Jack,1xHDMI, 1xVGA, 2xLan, 1xAduio, 6Xusb
Dimension: 165mmx128mmx41mm

　　
Fanless cooling design
AI alloy chassis, compact structure, flexible installation
1xVGA,1xHDMI, support VGA+HDMI independent dual display
2 x Gigabit Ethernet port, supports Wake On LAN
Rich I/O: 1xDC_Jack,1xHDMI, 1xVGA, 2xLan, 1xAduio, 6Xusb
Dimension: 165mmx128mmx41mm
Model No. NUC-35C3Z
Motherboard Processor Integrated Intel® Celeron® Processor 3855U 1.6GHz Dual Core processor. Supports Skylake-U Pentium/Celeron/Core i3/Core i5/Core i7 lower power consumption
Chipset SoC
Display Graphic card Integrated Intel® HD Graphics 510, supporting DirectX 12 OpenGL 4.4, supporting VGA, HDMI sync/async display
Storage Memory 1* DDR3L SODIMM memory slot, Max. 1600MHz, Max supports 16GB
SATA Supports 1* 2.5'' HDD/SSD
CF N/A
SSD 1* MSATA slot, supporting MSATA SSD
Sound Audio chip Integrated ALC662 6 channel high fidelity audio controller, supporting MIC/Line-out
Network Ethernet 2* Intel I211-AT GbE NIC controller, supporting Wake-on-LAN and PXE boot
WIFI 1* Mini-PCIE slot，supporting WIFI/3G module

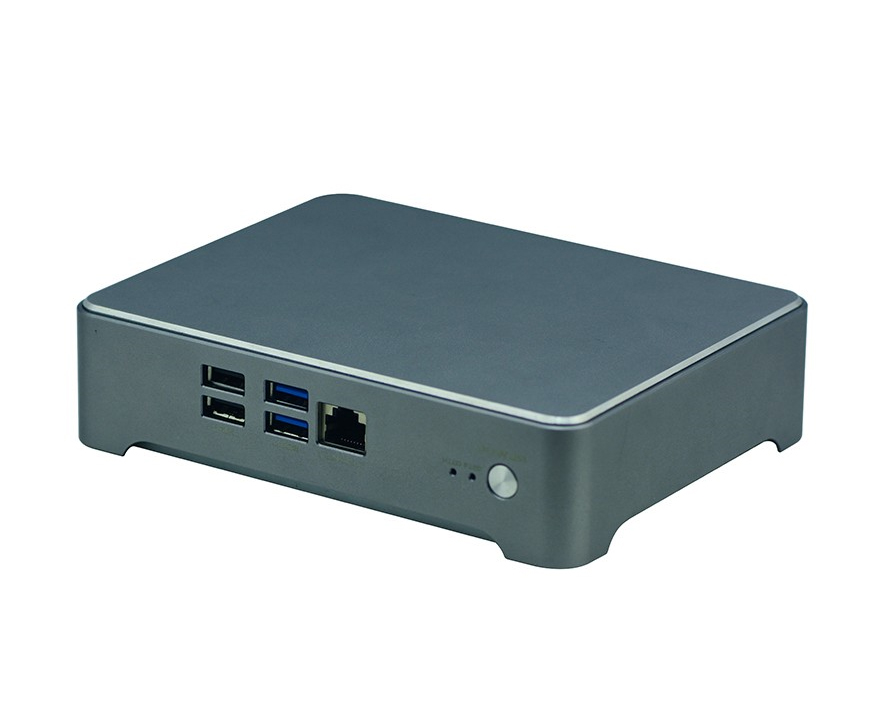

Front I/O Console 1* CISCO standard console port
USB 2* USB2.0 ports, 2*USB3.0 ports
Power Switch 1* Power Button
LED 1*HDD LED,1*POWER LED
LAN 2* RJ45 GbE Ethernet Ports

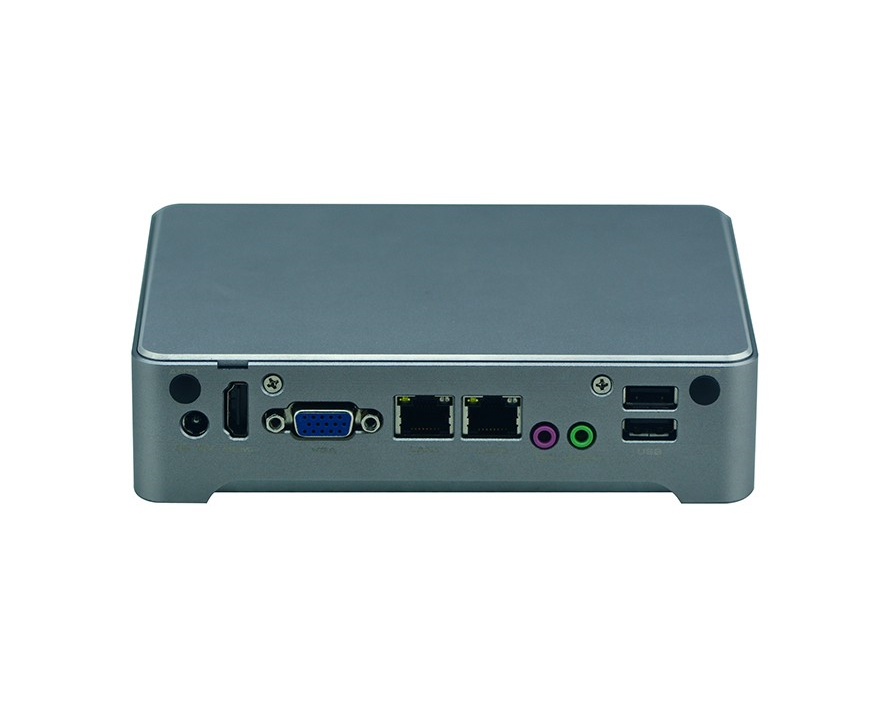

Rear I/O Display Connector 1* VGA,1* HDMI
USB 2*USB 2.0 ports
Power 1* 12V DC input port
Antenna 2* WIFI/3G SMA antenna(optional)
Audio 1* Line-out,1* MIC
Operating System   Supports Windows 7, Windows 8, Windows 10, Linux, etc.
Power Supply Input AC 110V~ 220V
Output DC 12V/5A
Type Desktop Adapters
Chassis Color Silver Grey
Dimension 165mm*128mm*41mm（L*W*H）
Structure Fanless structure
Material All Aluminum
Installing Method Desktop or Wall Mount
Reliability Working Temperature 0℃～45℃
Storage Temperature -20℃～70℃
Relative Humidity 5%-95% Relative Humidity, non-condensing
Working Vibration 0.5g rms/5-500HZ/random/operating
