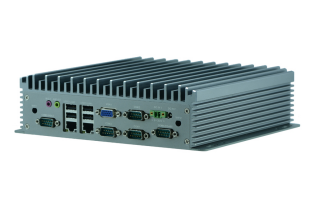

Mini Embedded Industrial PC powered by 6th/7th/8th/9th Intel
2 x RJ45 Gigabit network port
Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
2 x DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB
1 x 2.5 inch HDD bay, transmission speed can reach 6Gbps
1 x M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD transmission speed up to 32Gbps
1 x MiniPCIE slot, support WIFI module
2 x USB3.0, 4 x USB 2.0, 4 x COM, 1 x HDMI port,1 x VGA port，
1 x Line-out (green) interface, 1 x MIC (red) interface
1 x DC12~19V power input interface
Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
2 x DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB
1 x 2.5 inch HDD bay, transmission speed can reach 6Gbps
1 x M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD transmission speed up to 32Gbps
1 x MiniPCIE slot, support WIFI module
2 x USB3.0, 4 x USB 2.0, 4 x COM, 1 x HDMI port,1 x VGA port，
1 x Line-out (green) interface, 1 x MIC (red) interface
1 x DC12~19V power input interface
Specification: EPC-SK65F
Ordering Information
Packing List
Optional Accessories
| Model No. | EPC-SK65F | |
| Processor System | CPU | LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor |
| Frequency | Depends on processor | |
| Core Number | Depends on processor | |
| Chipset | Intel® H310C Express Chipset | |
| Fanless | Yes | |
| Memory | Technology | DDR4 2400/2133MHz |
| Max. Capacity | 64GB | |
| Socket | 2 x 204-pin SODIMM | |
| Graphic | Controller | Intel HD Graphic |
| VGA | 1920X1200@60HZ | |
| HDMI | 4096X2304@24HZ | |
| Audio | Codec | Realtek ALC662 |
| Interface | 1 x Line-out (green), 1 x MIC (red) | |
| Ethernet | Controller | Intel RTL8111H |
| Speed | 10/100/100Mpbs | |
| Interface | 2 x RJ45 | |
| Storage | Type | PCIe X2/SATA |
| Installation | 1 x M.2 slot | |
| Type | SATAIII | |
| Installation | 1 x 2.5” HDD/SSD Drive Bay | |
| I/O | Serial Port | 4 x RS232 COM, COM2 supports RS485 |
| Digital I/O | - | |
| USB 2.0 | 4 | |
| USB 3.0 | 2 | |
| Power-On/Reset Button | 1 x Power on | |
| Remote | - | |
| LED | - | |
| Antenna Hole | 2 x SMA Antenna Holes | |
| Expansion Interface | Mini PCIe | 1 x Mini PCIE slot, supports Wi-Fi |
| PCI | - | |
| PCI Express | - | |
| Watchdog Timer | Support hardware reset function (256 levels, 0~255 seconds) | |
| Power | Power Type | Desktop Power Adapter |
| Power Supply Voltage | DC 12V~19V | |
| Connector | DC Jack, 2-pin Terminal Block | |
| Power Adapter |
AC to DC, AC 90 to 240 VAC Input, DC 12V~19V |
|
| Environment | Operating Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 5%~95%, Non-condensing | |
| Vibration |
IEC 60068-2-64, 0.5Grms, Random 5~500Hz, 40 Mins/Axis |
|
| Mechanical | Dimension(W x H x D) | 200x62.5x235mm |
| Construction | All aluminum and bronze CPU heat sink, Fanless. | |
| Weight | 2.5KG | |
| Mounting | DIN RAIL | |
| Driver Support | Microsoft Windows | Yes |
| Linux | Yes | |
| Certification | EMC | CE,FCC Class B |
| NO. | Model | Processor | Chipset | Memory | VGA | HDMI | LVDS | LAN | USB3.0 | Power |
| 1 | EPC-SK65F | LGA1151 | H310C | 2 x DDR4 SODIMM | 1 | 1 | 2ch/24bit | 2 x RTL8111H | 2 | DC 19V |
Packing List
| 1 | Power cord 3P 180cm, China |
| 2 | Desktop power adapter |
| 3 | Driver CD |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
