Abundant COM ports Embedded Industrial Computer with Quad Co
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot(Optional)
1 x VGA/1 x HDMI
Intel Celeron J1900 Bay Trail Quad Core 2.0 GHz

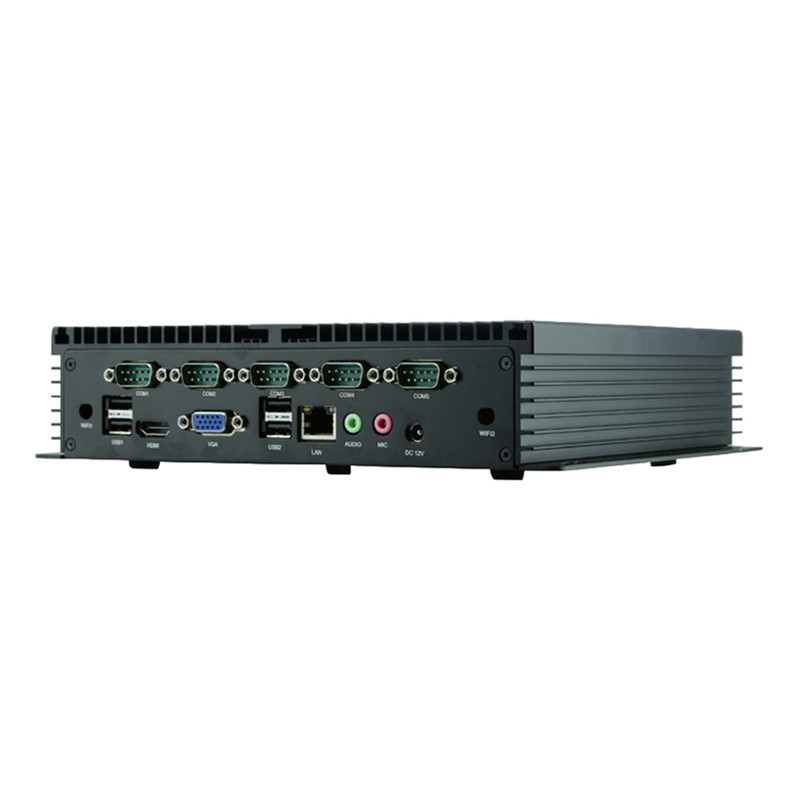

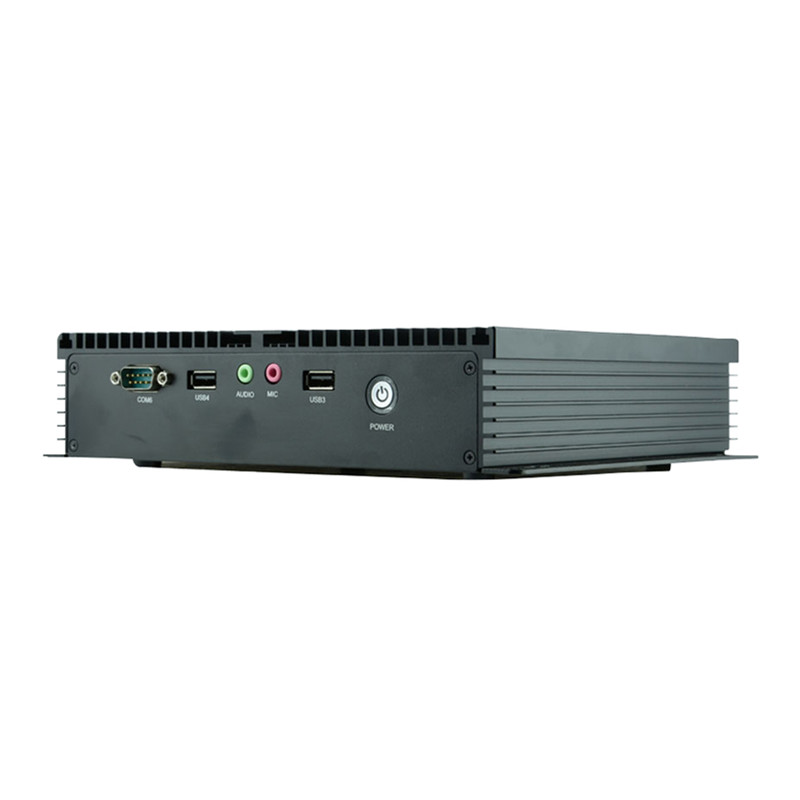

I/O Interfaces: 1 x 2P power input, 6xCOM,1xVGA, 1 x LAN, 1 x Audio, 5xUSB 2.0, 1 x USB 3.0, 1xHDMI
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot(Optional)
1 x VGA/1 x HDMI
Intel Celeron J1900 Bay Trail Quad Core 2.0 GHz
I/O Interfaces: 1 x 2P power input, 6xCOM,1xVGA, 1 x LAN, 1 x Audio, 5xUSB 2.0, 1 x USB 3.0, 1xHDMI
Specification: EPC-K509Z
Ordering Information
Packing List
Optional Accessories
| Chassis | Color | Black |
| Dimension | 214mm x 200mm x 52mm(L x W x H) | |
| Structure | Full aluminum fanless cooling structure | |
| Material | Full aluminum alloy | |
| Install | Desktop / embedded installation | |
| Motherboard | Model | M56-D6E |
| Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz processor | |
| Chipset | Adopt Intel® Baytrail SOC platform | |
| Graphics | HD Graphics | Integrated Intel® HD Graphics, support DirectX 11.1, OpenGL 3.2, support synchronous / asynchronous display. |
| Resolution |
1 x VGA, max support 2560x1600@60Hz 1 x HDMI, max support 1920x1080@60Hz |
|
| Storage | RAM | 1 x SODIMM support 1600/1333MHz DDR3L/1.35V memory, max support 8GB |
| HDD | Support 1 x 2.5 inch SATA HDD expansion | |
| CF | N/A | |
| SSD | Support 1 x MSATA SSD expansion | |
| Audio | Audio | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
| Network | Ethernet | 1 x RTL8111F Gigabit LAN port, support Wake On LAN, PXE |
| WiFi | 1 x Mini-PCIE slot, support WiFi, 3G module | |
| I/O Port | USB | 5 x USB2.0, 1 x USB3.0 |
| Power Switch | 1 x Power Switch | |
| LAN | 1 x RJ45 Gigabit Ethernet port | |
| Display | 1 x VGA, 1 x HDMI display output | |
| Serial Port | 6 x RS232 serial port, COM3 support RS485/422 | |
| Power In | 1 x 12V DC IN Jack | |
| Antenna | 2 x WIFI/3G SMA antenna (optional) | |
| Audio | 2 x MIC, 2 x Line-out | |
| Power Adaptor | Input | AC 110V ~ 220V |
| Output | DC 12V 5A | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows 7, Windows 8.1, Windows10, Windows XP, Linux OS | |
Ordering Information
| No. | Model | Processor | Memory | HDD | GPIO | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | SIM | power-input |
| 1 | EPC-K509Z | J1900/2.0GHz | N/A | N/A | N/A | 1 | 6 | 1 | 1 | 5 | 1 | N/A | DC 12V |
| 1 | Power cord 3P 180cm, China |
| 2 | 60W external adapter |
| 3 | Driver CD |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
