Embedded Fanless Mini Industrial PC Powered by Intel Core i5

　　
Fanless heat sink structure
Full aluminum alloy case, compact structure, flexible installation
Integrated Intel® i5 6360U Dual Core processor
2 x Intel Gigabit LAN port, support Wake on LAN
I/O Interfaces: 6 x COM, 4 x USB2.0, 2 x USB3.0, 2 x LAN, 1 x Audio, 1 x VGA, 1 x HMDI, 1 x SIM
Specification:                         EPC-N5560Z
Model EPC-N5560Z
Chassis

 		 Color Iron Gary
Dimension 182mmx155mmx80.5mm
Structure Full aluminum heat sink cooling structure
Processor CPU Integrated Intel® I5-6360U 2.0GHz Dual Core processor, TDP15W
Graphics Graphics Integrated Intel® HD Graphics 540
Memory RAM Onboard DDR3L 4GB Express memory
Storage
 		 SATA Support 1 x 2.5” HDD expansion
SSD Support 1 x MSATA SSD expansion

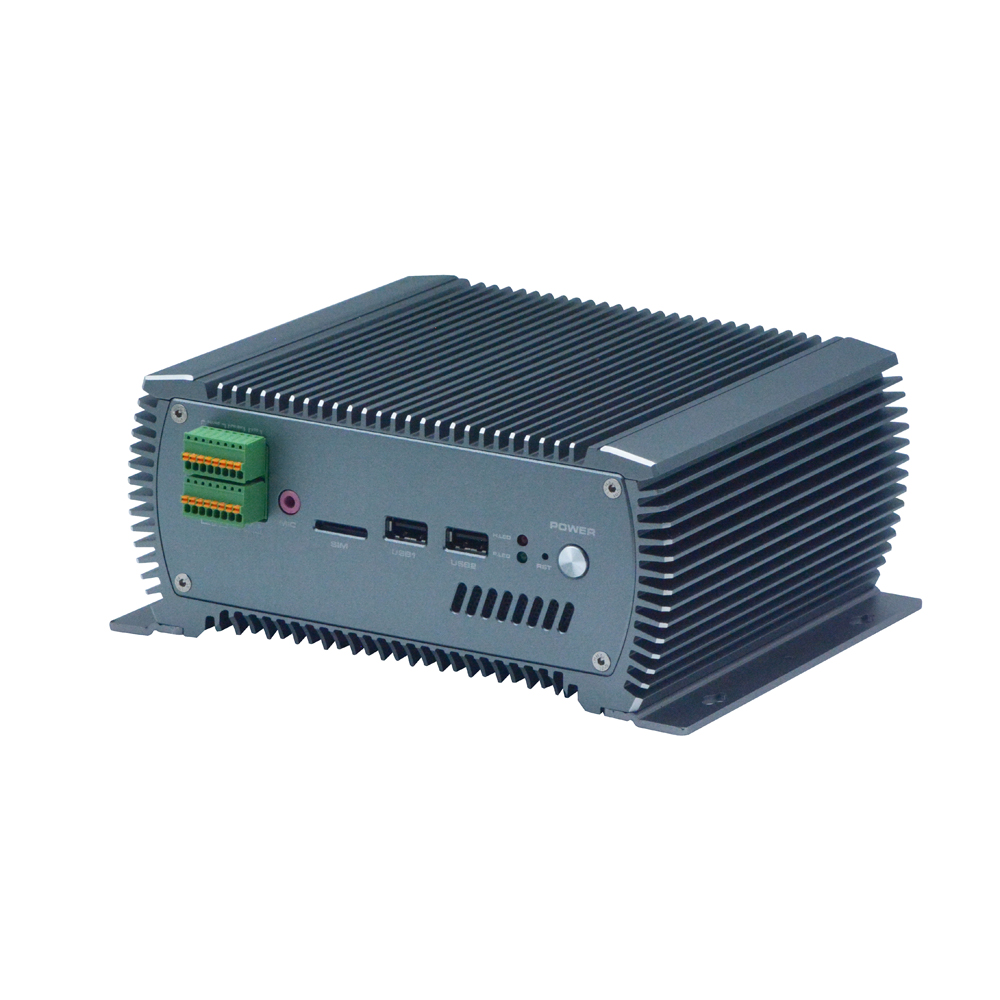

Front I/O




 		 Phoenix Terminal 2 x 8PIN (include audio, switch, GPIO signal)
USB 2 x USB2.0
Power Switch 1 x Power switch,1 x Reset switch
LED 1 x HDD LED, 1 x Power LED
Expansion 1 x SIM slot
Audio 1 x MIC

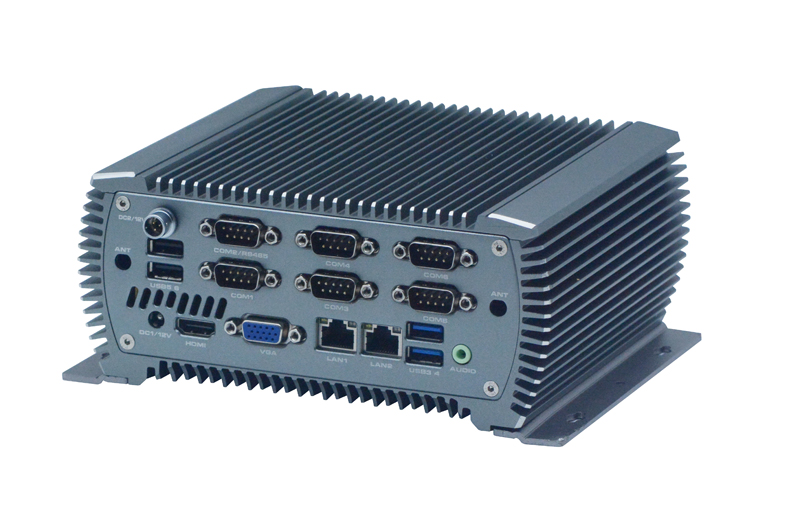

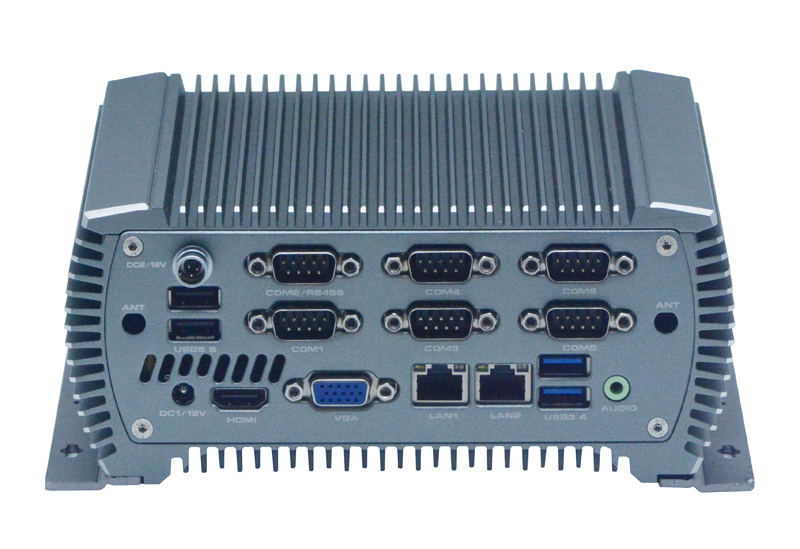

Rear I/O





 		 LAN 2 x RJ45 Gigabit LAN port
Display 1 x VGA, 1 x HDMI
Power 1 x 12V DC power input port
Antenna 2 x WIFI/3G SMA antenna(optional)
Audio 1 x Line-out
Serial Port 6 x RS232 COM port, COM2 support RS485
USB 2 x USB3.0, 2 x USB2.0
Adaptor

 		 Input AC 110V~ 220V
Output DC 12V/5A
Type External power adaptor
Reliability



 		 Installation Desktop or wall mount
Working Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95% relative humidity, non-condensing
Operating Vibration 0.5g rms/5-500HZ/random/operating









Order Information
No Model Processor Memory HDD Phoenix Terminal LAN COM HDMI VGA USB2.0 USB3.0 SIM Power-input
1 EPC-N5560Z 6360U/2.0GHz Onboard 4G N/A 2 x 8PIN 2 6 1 1 4 3 1 DC 12V
2 EPC-N55C3Z 3855U/1.60GHz Onboard 4G N/A 2 x 8PIN 2 6 1 1 4 3 1 DC 12V
