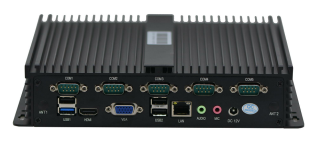

Fanless Mini Desktop Industrial Computer with Integrated Int
Fanless heat sink structure, all aluminum alloy material
Integrated Intel® Core I3 3217U Dual-Core Four-Thread processor
Support 1 x HDMI HD port + 1 x VGA port independent dual display
Support 1 x Realtek RTL8111F gigabit network card, support network call, PXE function
6 x RS232 serial port (COM2/3 supports RS232/422/485, COM1~6 pin 9 supports live function)
Support 5 x USB2.0 port, 1 x USB3.0 port
Integrated Intel® Core I3 3217U Dual-Core Four-Thread processor
Support 1 x HDMI HD port + 1 x VGA port independent dual display
Support 1 x Realtek RTL8111F gigabit network card, support network call, PXE function
6 x RS232 serial port (COM2/3 supports RS232/422/485, COM1~6 pin 9 supports live function)
Support 5 x USB2.0 port, 1 x USB3.0 port
Specification: EPC-KD103Z
Ordering Information
| Processor System | CPU | Integrated Intel® Core I3 3217U dual-core four-thread processor |
| Frequency | 1.8GHz~2.7GHz（MAX 2.70 GHz） | |
| Power | TDP 17W | |
| Chipset | Intel® NM70 Express Chipset | |
| BIOS | 32Mb Flash ROM | |
| Ram | Technology | DDR3L 1600/1333MHz |
| Max | 8GB | |
| Slot | 1 x SODDR3 | |
| Display | Graphics | Intel® HD Graphics |
| Graphics engine | N/A | |
| HDMI | 1 x HDMI，1920X1200@60HZ | |
| CRT |
1 x VGA，2560X1600@60Hz |
|
| Independent dual display | 1 x HDMI+1 x VGA | |
| Ethernet | LAN1 | 1 x Realtek RTL8111F gigabit network card, support network call, PXE function |
| LAN2 | N/A | |
| Audio | Port | 2 x AUDIO interface, 2 x MIC interface, onboard ALC662 6-channel high-fidelity audio controller |
| I/O port | Serial port | 6 x RS232 serial port (COM2/3 supports RS232/422/485, COM1~6 pin 9 supports live function) |
| USB | 5 x USB2.0 port，1 x USB3.0 port | |
| SIM | N/A | |
| Phoenix Terminal | N/A | |
| Expand | Mini PCIE | 1 x Mini PCIE slot, support WIFI/3G/4G module |
| Storage | SATA | 1 x 2.5-inch hard drive expansion |
| SSD | 1 x MSATA SSD solid state drive expansion, SSD transmission speed can reach 6Gbps | |
| Software support | Microsoft Windows | Windows 7、Windows10，64bit |
| Linux | Ubuntu | |
| Power requirement | Power type | External power adapter |
| Voltage input | DC 12V | |
| Power output | AC TO DC，36W/60W（optional） | |
| Chassis | Structure | All aluminum alloy without fan |
| Installation | Desktop or wall-mounted | |
| Dimensions (L x W x H) | 235mmx200mmx52mm | |
| Environment | Operating Temp. | -10℃～60℃ |
| Storage Temp. | -20℃～70℃ | |
| Relative Humidity | 5%-95% Relative humidity, no condensation | |
| Vibration | 0.5g rms/5-500HZ/random/operating |
| No. | Model | Processor | Memory | HDD | GPIO | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | SIM | power-input |
| 1 | EPC-K509Z | J1900/2.0GHz | N/A | N/A | N/A | 1 | 6 | 1 | 1 | 5 | 1 | N/A | DC 12V |
| 2 | EPC-KD105Z | 3337U/1.80GHz | N/A | N/A | N/A | 1 | 6 | 1 | 1 | 5 | 1 | N/A | DC 12V |
| 3 | EPC-KD103Z | 3217U/1.80GHz | N/A | N/A | N/A | 1 | 6 | 1 | 1 | 5 | 1 | N/A | DC 12V |
-
