Fanless Industrial PC with Intel Celeron 3865U 1.8GHz dual-c

　　
Integrated Intel® Celeron 3865U 1.8GHz dual-core processor, TDP 15W
2 x DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB
Support independent dual display, 1 x HDMI and 1 x VGA display output
Support 2 x WGI211AT gigabit network card, support LAN wake-up, PXE function
Support 6 x RS232 DB9 serial interface, COM1/2 support the 9th pin 5V/12V live, COM5/6 support RS485 switch
Support 1 x 12PIN Phoenix terminal, four in and four out GPIO/switch/5V DC output
Support 4 x USB3.0 port, 2 x USB2.0 port
Specification:
Model No. C5750Z-C6(3865U)
Chassis Material/structure All aluminum alloy fanless
Color Bright black
Dimension 174mmx148mmx57mm (L x W x H)
Weight (bare metal net weight) 1.35KG
Installation Desktop/embedded
Motherboard CPU Integrated Intel® Celeron 3865U 1.8GHz dual-core processor, TDP 15W
System chip Based on Intel®Skylake-U SOC platform
Display Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4
RAM 2 x DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum support 32GB

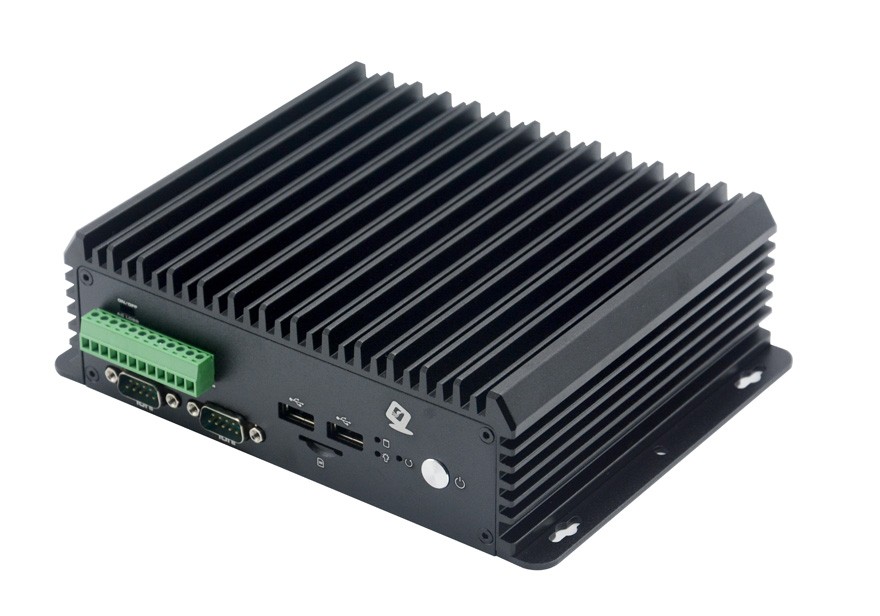

Front panel interface POWER 1 x Power switch, 1 x Reset switch
AC LOSS 1 x AC LOSS (Toggle switch when power on)
USB 2 x USB2.0 interface, 1x built-in USB dongle
Phoenix terminal 1 x 12pin, support four in and out GPIO, switch, 5V
COM 2 x DB9 serial interface, COM5, COM6 support RS232/RS485 switch
SIM 1 x SIM slot，3G/4G Module

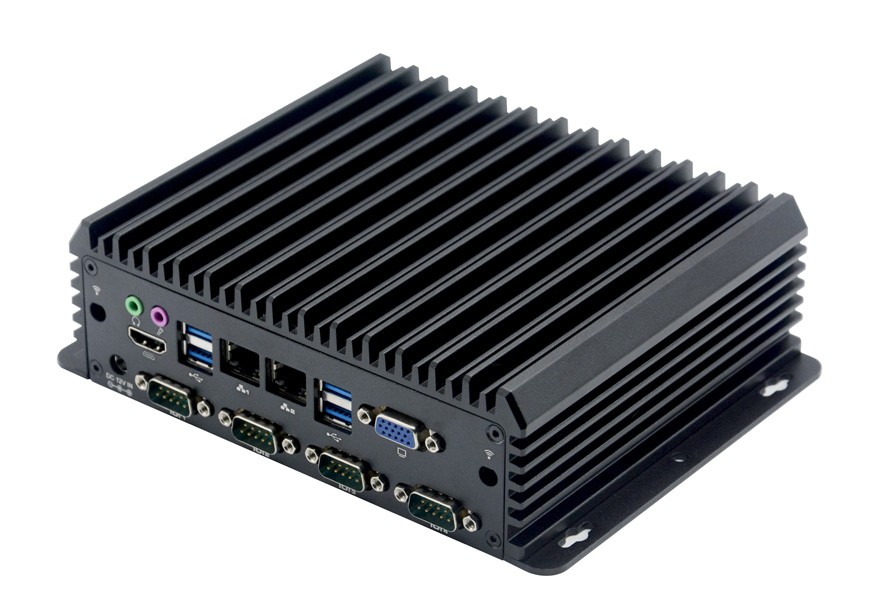

Rear panel interface Display port 1 x VGA port,1 x HDMI1.4 port
LAN 2 x Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function
USB 4 x USB3.0 port
COM 4 x DB9 RS232 serial interface, COM1/2 supports the 9th pin 5V/12V charged
Audio 1 x Line out interface，1 x MIC interface
power supply 1 x DC power adapter interface, support DC12V power input
Storage SATA 1 x 2.5 inch hard drive expansion
SSD 1 x MSATA SSD solid state drive expansion, transmission speed up to 6Gbps
Expand Mini PCIE 1 x Mini PCIE slot, support WIFI/4G module
M.2 1 x M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD
Software support Microsoft Windows Windows 7/10，64bit
Linux Ubuntu
Watch Dog Support hardware reset function (256 levels, 0~255 seconds)
Power requirement Power type External power adapter
Voltage input DC 12V
Power output AC TO DC、36W / 60W（Optional）
Environment Operating Temp. -10℃～60℃
Storage Temp. -20℃～70℃
Relative Humidity 5%-95% Relative humidity, non-condensing
Vibration 0.5g rms/5-500HZ/random/operating

Ordering Information
No. Model Processor M.2 Phoenix terminal LAN COM HDMI VGA USB2.0 USB3.0 Built-in USB SIM power-input
1 C5750Z-C6（J1900） J1900/2.0GHz N/A 1 x 12PIN 2 6 1 1 5 1 1 1 DC 12V
2 EPC-C5750Z-C6（3865U） 3865U/1.8GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
3 C5750Z-C6（4120U） 4120U/2.0GHz N/A 1 x 12PIN 2 6 1 1 4 2 N/A 1 DC 12V
4 C5750Z-C6（5250U） 5250U/1.6GHz N/A 1 x 12PIN 2 6 1 1 4 2 N/A 1 DC 12V
5 C5750Z-C6（6360U） 6360U/2.0GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
6 C5750Z-C6（6650U） 6650U/2.2GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
7 C5750Z-C6（7200U） 7200U/2.5GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
8 C5750Z-C6（7600U） 7600U/2.8GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
9 C5750Z-C6（8145U） 8145U/2.1GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
10 C5750Z-C6（8265U） 8265U/1.6GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V
11 C5750Z-C6（8565U） 8565U/1.8GHz 1 1 x 12PIN 2 6 1 1 2 4 1 1 DC 12V

Packing List
1 SATA data cable
2 Power cord 3P 180cm, China
3 Accessory screw bag
Optional Accessories
1 Power cord 3P 180cm, USA
2 Power cord 3P 180cm, Europe
3 Power cord 3P 180cm, UK
4                     Power cord 3P 180cm, Japan
5 Power cord 3P 180cm, India
