IPC-M81
Supports Intel LGA1150 Celeron/Pentium/Core i3/Core i5/Core i7 Processors

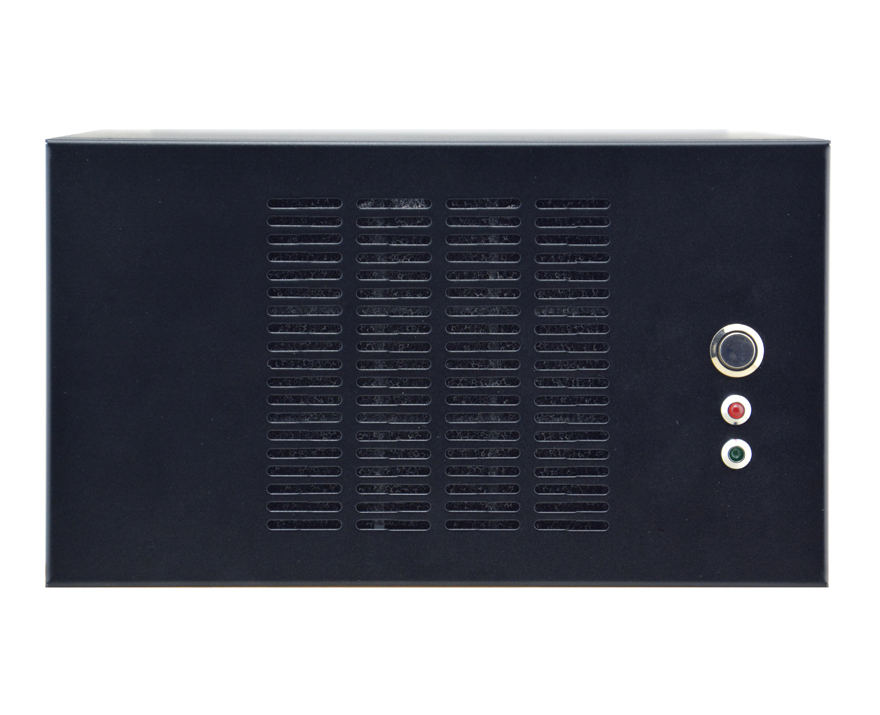

SGCC chassis, compact structure and flexible installing
Dual channel DDR3 SODIMM Socket, supports 1600/1333MHz RAM, Max. 16GB
1*VGA/1*HDMI
2 x Realtek RTL8111F Gigabit Ethernet Controller

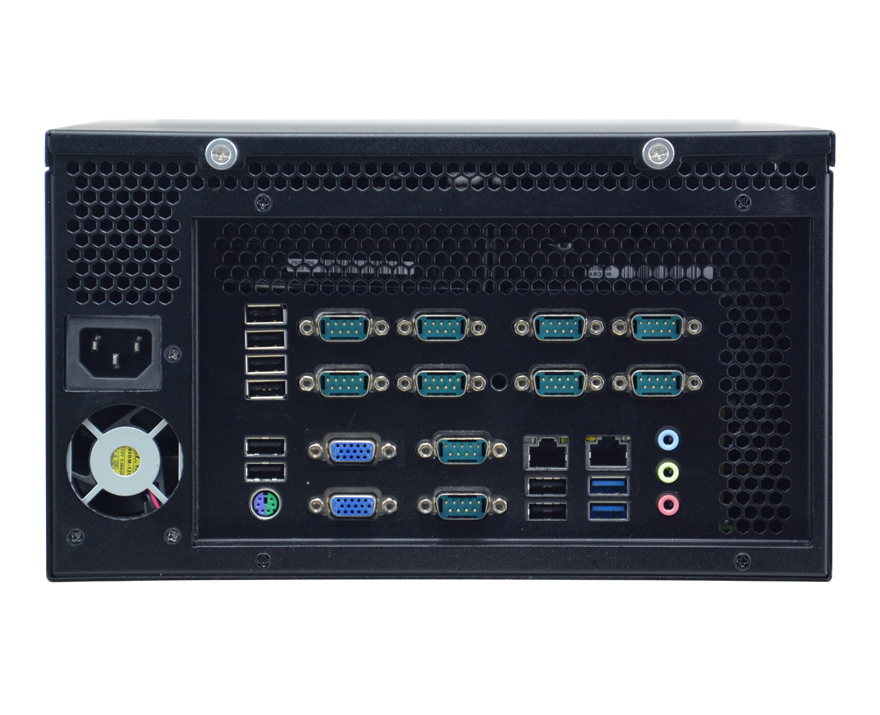

I/O Interfaces:2x VGA, 10x COM, 8x USB2.0, 2x USB3.0

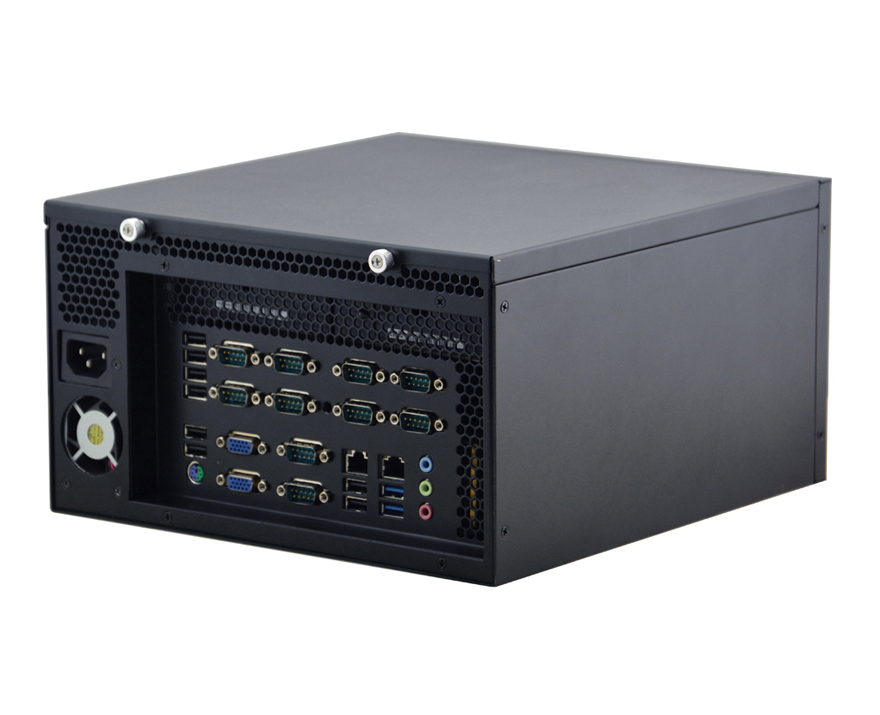

Designed with Intel® Haswell LGA1150 Celeron/Pentium/Core i3/Core i5/Core i7/Xeon E5 1200 v3 processor and H81 chipset and ATX power supply, IPC-M81 is a compact and powerful industrial computing housed in a size of 262mm*278mm*153mm. The IPC-M81 supports nine RS232, one RS232/422/485, two 10/100/1000 LAN port, ten USB ports, two VGA display and audio jack (speaker-out, speaker-in, MIC).
IPC-M81 can be applied to industrial and building automation applications. With rich IO connection in palm-sized system, IPC-M81 is an ideal fanless system for factory automation, machine automation, gate control, public information, self-service system, POS, Kiosk, low-power budget devices, transportation applications and self-service applications.
IPC-M81 can be applied to industrial and building automation applications. With rich IO connection in palm-sized system, IPC-M81 is an ideal fanless system for factory automation, machine automation, gate control, public information, self-service system, POS, Kiosk, low-power budget devices, transportation applications and self-service applications.
Supports Intel LGA1150 Celeron/Pentium/Core i3/Core i5/Core i7 Processors
SGCC chassis, compact structure and flexible installing
Dual channel DDR3 SODIMM Socket, supports 1600/1333MHz RAM, Max. 16GB
1*VGA/1*HDMI
2 x Realtek RTL8111F Gigabit Ethernet Controller
I/O Interfaces:2x VGA, 10x COM, 8x USB2.0, 2x USB3.0
SGCC chassis, compact structure and flexible installing
Dual channel DDR3 SODIMM Socket, supports 1600/1333MHz RAM, Max. 16GB
1*VGA/1*HDMI
2 x Realtek RTL8111F Gigabit Ethernet Controller
I/O Interfaces:2x VGA, 10x COM, 8x USB2.0, 2x USB3.0
| Model No. | IPC-M81 | |
| Processor System | CPU | LGA1150 Intel Celeron/Pentium/Core i3/Core i5/Core i7 |
| Frequency | TBD | |
| Core Number | TBD | |
| Chipset | Intel H81 | |
| Fanless | No | |
| Memory | Technology | DDR3 1600/1333MHz |
| Max. Capacity | 16GB | |
| Socket | 2x 204-pin SODIMM | |
| Graphic | Controller | Intel HD Graphic |
| VGA | 1920X1200@60HZ | |
| HDMI | 1920X1200@60HZ | |
| Audio | Codec | ALC662 |
| Interface | 3x Phone Jack for MIC-in, Line-in and Line-out | |
| Ethernet | Controller | Realtek RTL8111F |
| Speed | 10/100/1000Mbps | |
| Interface | 2x RJ45 | |
| Storage | Type | SATAIII |
| Installation | 1x m-SATA Socket | |
| Type | SATAIII, SATAII | |
| Installation |
2x 2.5” HDD/SSD Drive Bay or 2x 3.5'' HDD/SSD Drive Bay |
|
| I/O | Serial Port | 10x RS232(COM3 supports RS485/RS422), DB9 Male |
| Digital I/O | - | |
| USB 2.0 | 8x Type A | |
| USB 3.0 | 2x Type A | |
| Power-On/Reset Button | 1x Power On/Off | |
| Remote | - | |
| LED | Power/HDD | |
| Antenna Hole | - | |
| Expansion Interface | Mini PCIe | - |
| PCI | - | |
| PCI Express | - | |
| Watchdog Timer |
Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable |
|
| Power | Power Type | ATX |
| Power Supply Voltage | 12 VDC, 5VDC, 3.3VDC | |
| Connector | C14 Jack | |
| Power Adapter | AC to DC, AC 90 to 240 VAC Input, 12/5/3.3V VDC output | |
| Environment | Operating Temperature | 00°C~45°C (with Industrial-grade Components) |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 5%~95%, Non-condensing | |
| Vibration |
IEC 60068-2-64, 0.5Grms, Random 5~500Hz, 40 Mins/Axis |
|
| Mechanical | Dimension(W x H x D) | 278x262x153mm |
| Construction | SGCC | |
| Weight | 3.4kg | |
| Mounting | Wallmount | |
| Driver Support | Microsoft Windows | Yes |
| Linux | Yes | |
| Certification | EMC | CE,FCC Class B |
-
