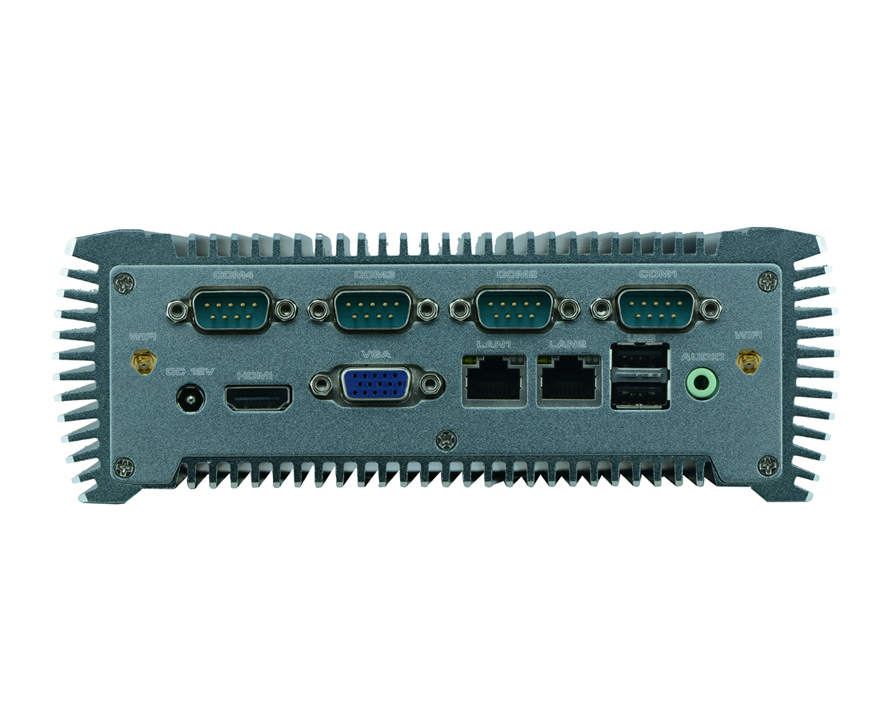

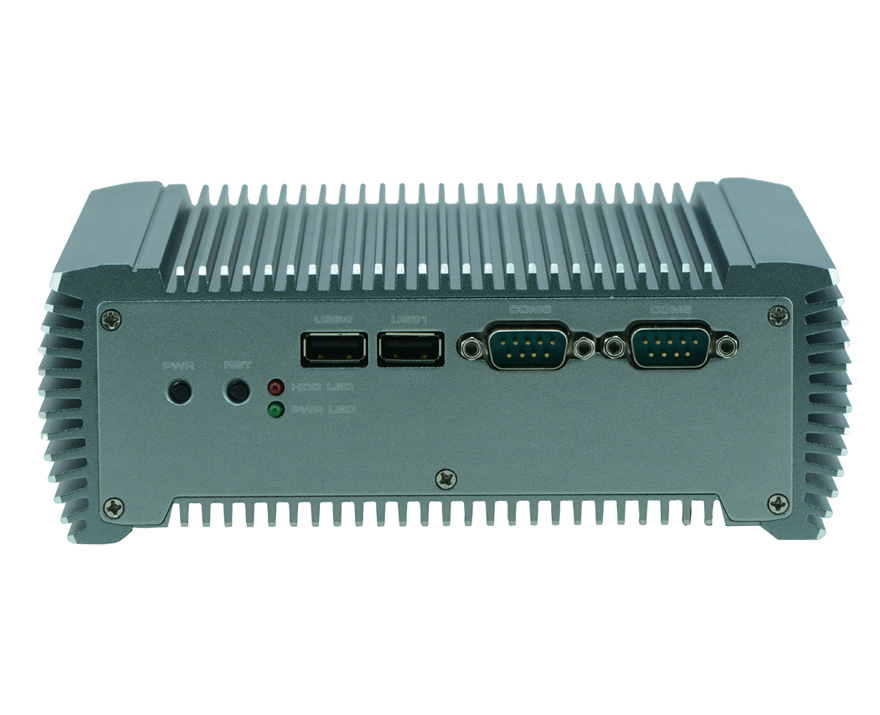

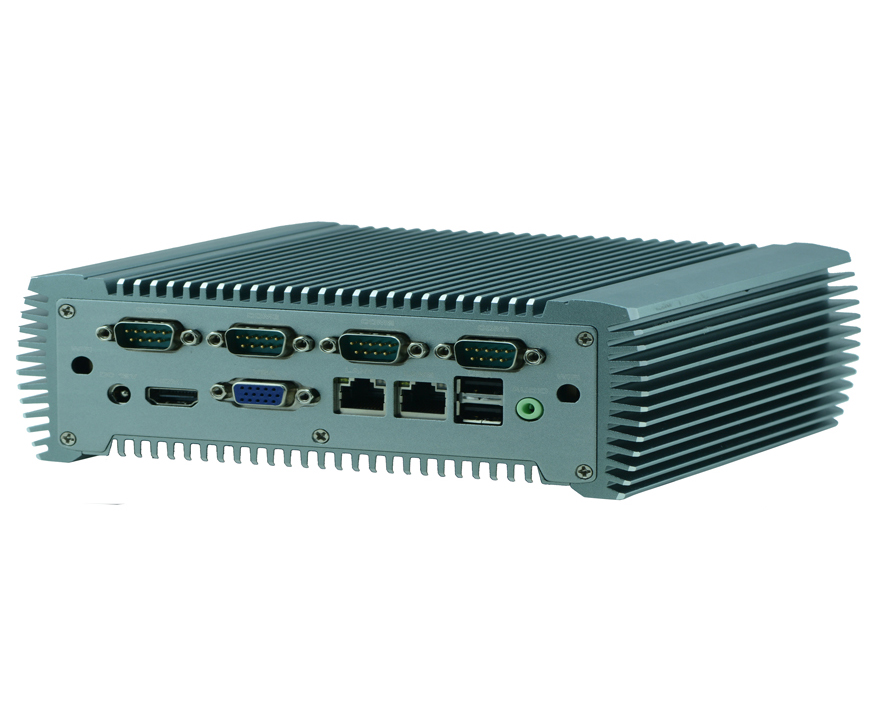

Designed with Intel^® Celeron 1037U/3217U/3317U processor and SoC chipset and 12VDC input to take a low power consumption advantage, EPC-B803 is a compact fanless industrial computing housed in a size of 182mm*156mm*63.5mm. The EPC-B803 supports five RS232, one RS232/485, two 10/100/1000 LAN port, four USB ports, one HDMI display, one VGA display and audio jack (speaker-out). It is also a wireless-ready platform which has Mini-PCIe socket and SIM card holder onBoard to support optional GSM wireless module or Wi-Fi module (default).
With isolation protection of 2,500VDC, and dry contact support, EPC-B803 can be applied to industrial and building automation applications. With rich IO connection in palm-sized system, EPC-B803 is an ideal fanless system for factory automation, machine automation, gate control, public information, self-service system, POS, Kiosk, low-power budget devices, transportation applications and self-service applications.
