EPC-NFD509
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
Intel Celeron J1900 Bay Trail Quad Core 2.0 GHz

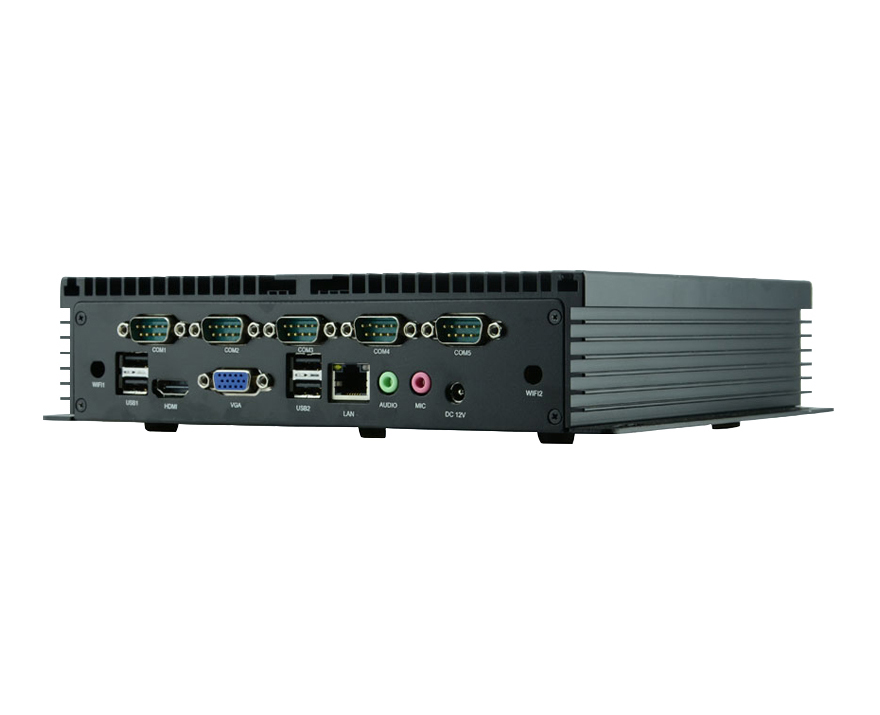

I/O Interfaces: 1 x 2P power input, 10xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
Intel Celeron J1900 Bay Trail Quad Core 2.0 GHz
I/O Interfaces: 1 x 2P power input, 10xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
Intel Celeron J1900 Bay Trail Quad Core 2.0 GHz
I/O Interfaces: 1 x 2P power input, 10xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
Specification: EPC-NFD509
Ordering Information
Packing List
Optional Accessories
| Model No. | EPC-NFD509 | |
| Processor System | CPU | Intel Celeron J1900 |
| Frequency | 2.0GHz | |
| Core Number | 4C | |
| Chipset | Intel Baytrail SoC platform | |
| Fanless | Yes | |
| Memory | Technology | DDR3L 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204-pin SODIMM | |
| Graphic | Controller | Intel HD Graphic |
| VGA | 1920X1200@60HZ | |
| HDMI | 1920X1200@60HZ | |
| Audio | Codec | Realtek ALC662 |
| Interface | 4x Phone Jack for 2x MIC-in and 2x Line-out | |
| Ethernet | Controller | Realtek RTL8111F |
| Speed | 10/100/1000Mbps | |
| Interface | 1x RJ45 | |
| Storage | Type | SATAII |
| Installation | 1 x m-SATA Socket | |
| Type | SATAII | |
| Installation | 1x 2.5” HDD/SSD Drive Bay | |
| I/O | Serial Port | 6x RS232(COM2 supports RS485), DB9 Male |
| Digital I/O | - | |
| USB 2.0 | 6x Type A | |
| USB 3.0 | 1x Type A | |
| Power-On/Reset Button | 1x Power On/Off | |
| Remote | - | |
| LED | - | |
| Antenna Hole | 2x SMA Antenna Holes | |
| Expansion Interface | Mini PCIe | 1x Full-sized Socket with SIM Card Reader |
| PCI | - | |
| PCI Express | - | |
| SIM | 1 x SIM slot | |
| Watchdog Timer |
Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable |
|
| Power | Power Type | Desktop Power Adapter |
| Power Supply Voltage | 12 VDC | |
| Connector | DC Jack | |
| Power Adapter |
AC to DC, AC 90 to 240 VAC Input, DC 12VDC /5A 60W |
|
| Environment | Operating Temperature | 0°C~45°C (with Industrial-grade Components) |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 5%~95%, Non-condensing | |
| Vibration |
IEC 60068-2-64, 0.5Grms, Random 5~500Hz, 40 Mins/Axis |
|
| Mechanical | Dimension(W x H x D) | 214x50x200mm |
| Construction | Aluminum + SGCC | |
| Weight | 2.2kg | |
| Mounting | Wallmount | |
| Driver Support | Microsoft Windows | Yes |
| Linux | Yes | |
| Certification | EMC | CE,FCC Class |
Ordering Information
| Part number | CPU | LAN | COM | USB | Wi-Fi | Power |
| EPC-NFD509 | Celeron J1900 | 2 x RLT8111F | 6 | 6 | Optional | 60W external adapter |
| 1 | Power cord 3P 180cm, China |
| 2 | 60W external adapter |
| 3 | Driver CD |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
