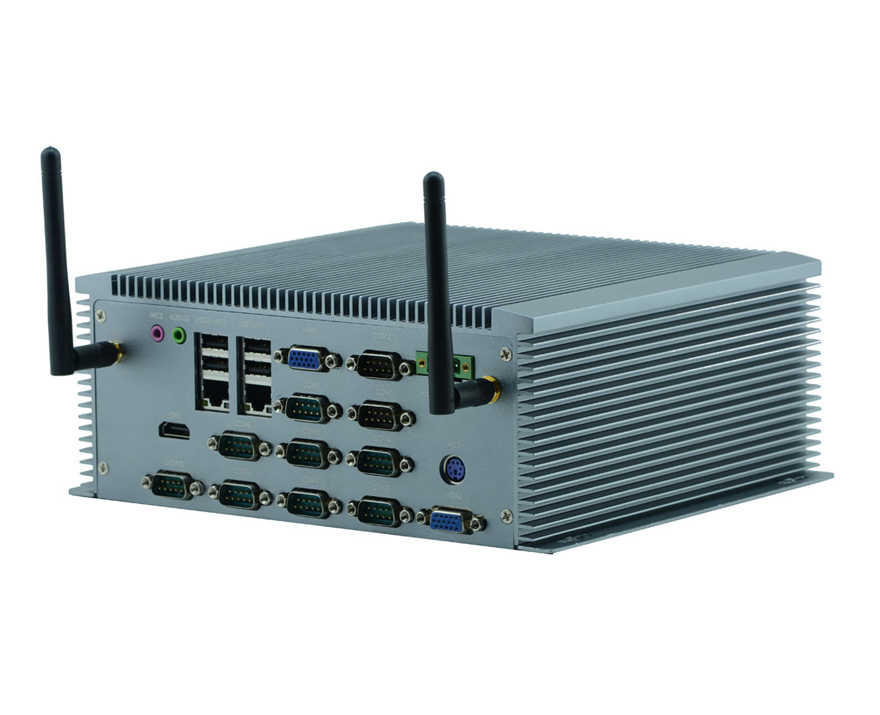

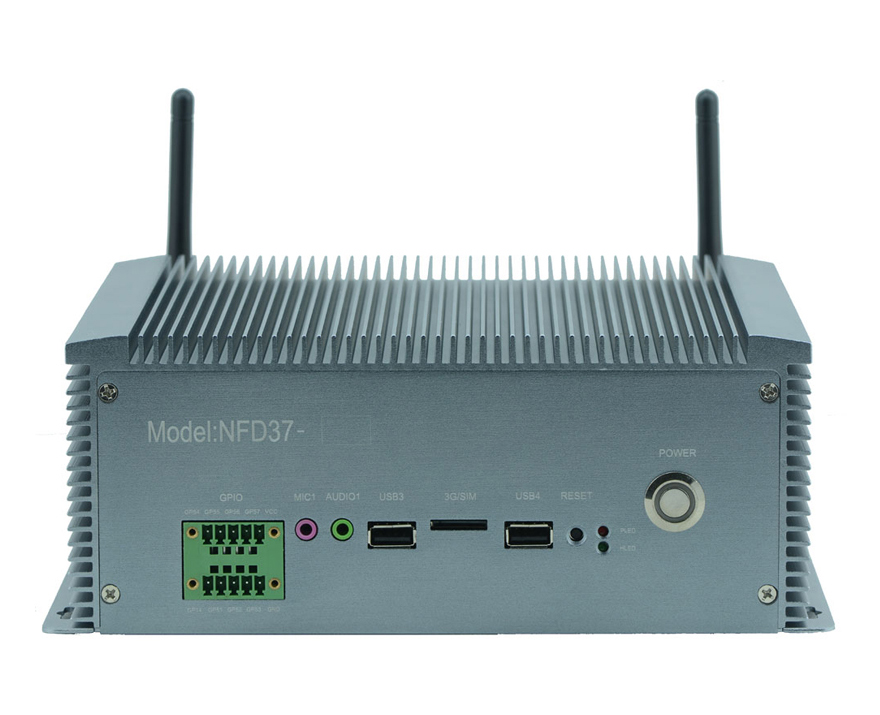

EPC-NFD37
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
2 x Intel Gigabit Ethernet port supporting wake on LAN

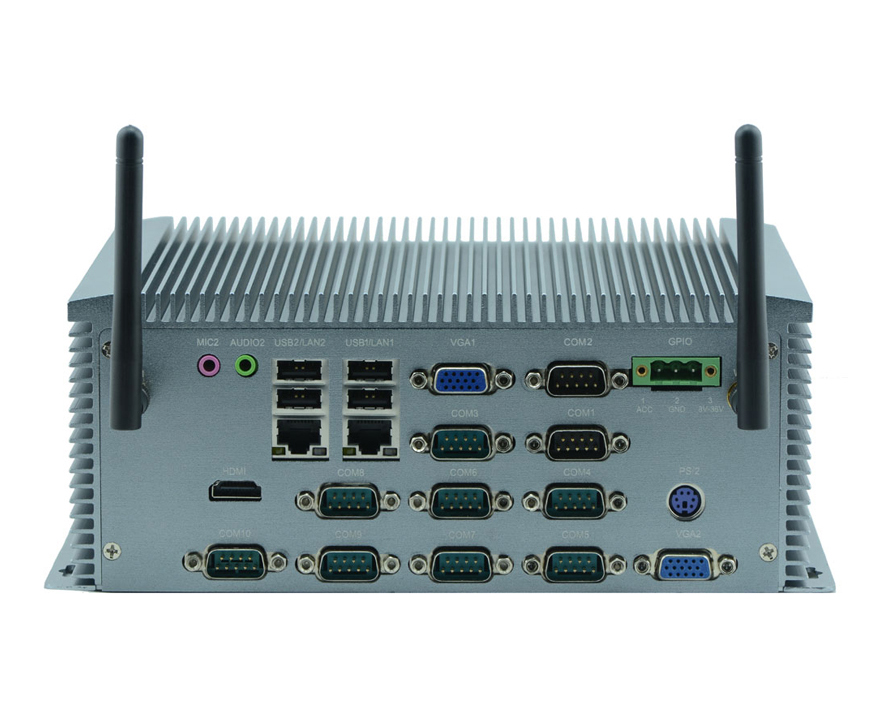

I/O Interfaces: 1 x 2P power input, 10xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
2 x Intel Gigabit Ethernet port supporting wake on LAN
I/O Interfaces: 1 x 2P power input, 10xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
All aluminum chassis, compact structure and flexible installing
Support WIFI/3G module, providing onboard SIM expansion slot
1*VGA/1*HDMI
2 x Intel Gigabit Ethernet port supporting wake on LAN
I/O Interfaces: 1 x 2P power input, 10xCOM,1xVGA,2xLan, 1xAduio, 6xUSB,1xHDMI
| Model No. | EPC-NFD37 | |
| Processor System | CPU | Intel Celeron 1037U |
| Frequency | 1.8GHz | |
| Core Number | 2C | |
| Chipset | Intel NM70 | |
| Fanless | Yes | |
| Memory | Technology | DDR3 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204-pin SODIMM | |
| Graphic | Controller | Intel HD Graphic |
| VGA | 1920X1200@60HZ | |
| HDMI | 1920X1200@60HZ | |
| Audio | Codec | Realtek ALC662 |
| Interface | 4x Phone Jack for 2x MIC-in and 2x Line-out | |
| Ethernet | Controller | Intel 82583V |
| Speed | 10/100/100Mpbs | |
| Interface | 2x RJ45 | |
| Storage | Type | SATAII |
| Installation | 1 x m-SATA Socket | |
| Type | SATAII | |
| Installation | 1x 2.5” HDD/SSD Drive Bay | |
| I/O | Serial Port | 10x RS232(COM3 supports RS485), DB9 Male |
| Digital I/O | 1x GPIO | |
| USB 2.0 | 6x Type A | |
| USB 3.0 | - | |
| Power-On/Reset Button | 1x Power On/Off, 1x Reset | |
| Remote | - | |
| LED | Power/HDD | |
| Antenna Hole | 2x SMA Antenna Holes | |
| Expansion Interface | Mini PCIe | 1x Full-sized Socket with SIM Card Reader(SIM socket available at I/O) |
| PCI | - | |
| PCI Express | - | |
| Watchdog Timer |
Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable |
|
| Power | Power Type | Desktop Power Adapter |
| Power Supply Voltage | 8 VDC ~ 36 VDC | |
| Connector | DC Jack | |
| Power Adapter |
AC to DC, AC 90 to 240 VAC Input, DC 12VDC /5A 60W |
|
| Environment | Operating Temperature | 0°C~45°C (with Industrial-grade Components) |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 5%~95%, Non-condensing | |
| Vibration |
IEC 60068-2-64, 0.5Grms, Random 5~500Hz, 40 Mins/Axis |
|
| Mechanical | Dimension(W x H x D) | 200x89.5x235mm |
| Construction | Aluminum + SGCC | |
| Weight | 3.8kg | |
| Mounting | Wallmount | |
| Driver Support | Microsoft Windows | Yes |
| Linux | Yes | |
| Certification | EMC | CE,FCC Class B |
-
