2U Rackmount Storage Server powered by Intel® Xeon D1500 Pro
Overview:
The SS-212-D15 is a 12-bay compact 2U Rackmount storage server/NAS for large and extensive scaling of data storage. Its comprehensive data protection technologies, including High Availability, hybrid cloud backup, and server or virtual machine backup approaches, make it a reliable server for massive storage deployment. SS-212-D15 is backed by Armortec’s 3 year limited warranty.
The SS-212-D15 is a 12-bay compact 2U Rackmount storage server/NAS for large and extensive scaling of data storage. Its comprehensive data protection technologies, including High Availability, hybrid cloud backup, and server or virtual machine backup approaches, make it a reliable server for massive storage deployment. SS-212-D15 is backed by Armortec’s 3 year limited warranty.
Feature:
Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor
Dual Channel R/U ECC DIMM(x4) DDR3L 1333/1600MHz, Max 64GB
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
Elastic expandability with 1 x PCIe 3.0 x16 slots, 1 x PCI-E3.0 x8 slot for installing additional expansion card
Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor
Dual Channel R/U ECC DIMM(x4) DDR3L 1333/1600MHz, Max 64GB
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
Elastic expandability with 1 x PCIe 3.0 x16 slots, 1 x PCI-E3.0 x8 slot for installing additional expansion card
SS-212-D15

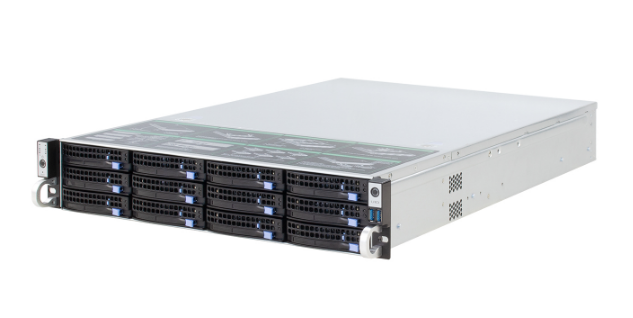

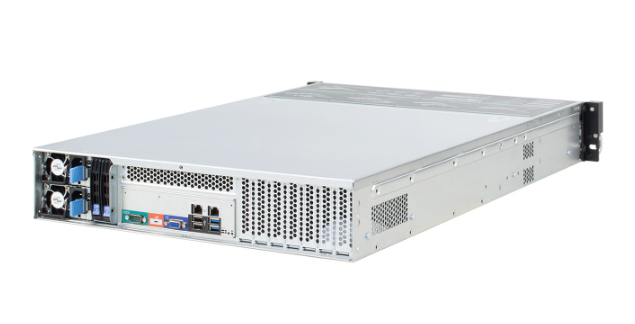

2U Rackmount Storage Server powered by Intel® Xeon D1500 Processor with 12 x 3.5/2.5 inch HDD bay
Specification: SS-212-D15
CPU Availability
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
2U Rackmount Storage Server powered by Intel® Xeon D1500 Processor with 12 x 3.5/2.5 inch HDD bay
Specification: SS-212-D15
| CPU | Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor, SOC |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | Dual Channel R/U ECC DIMM(x4) DDR3L 1333/1600MHz , Max 64GB |
| Front drive type | 12 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included) |
| Hot swappable drive | Yes |
| Internal drive type | 3 x 2.5’’ SATA HDD/SSD slot |
| External port |
4 x USB 2.0 ports 2 x USB 3.0 ports |
| Dimensions (HxWxD) | 88 x 437.5 x 650 mm |
| Weight | - |
| LAN | 4 x RJ45 Gigabit Ethernet port |
| Wake on LAN/WAN | Yes |
| BMC | Aspeed® AST2400 (NO IPMI) |
| PCIe 3.0 slot |
1 x PCI-E 3.0 x16 slot 1 x PCI-E3.0 x8 slot High-performance network interface card support |
| M.2 | 1 x M.2 slot, support NVME and SATA3.0 SSD automatically |
| Scheduled power on/off | Yes |
| System fan | 6 |
| Power supply | 500W single or dual power supply |
| AC/DC input power voltage | 100~240V AC / 48V DC |
| System Control |
1 x Reset button, 1 x UID SW 1 x Power LED, 1 x HDD LED, 1 x NIC LED, 1 x UID LED 1 x ON/FAN Fail LED, 1 X Power Fail LED, |
| Supported OS |
Windows v.Next server; Windows Server 2012 R2; Windows Server 2012; Windows Server 2008 R2 SP1; Windows 7; Windows 8.1; Windows 10; Red Hat Enterprise Linux Server (RHEL) ; Novell SuSE Linux Enterprise Server (SUSE) ; Fedora; Ubuntu; CentOS; Xen & KVM; Yocto; FreeBSD |
| Operating temperature | 5°C to 35°C |
| Storage temperature | -40°C to 55°C |
| Relative humidity | Non operating, 0% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| 1 | Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor |
