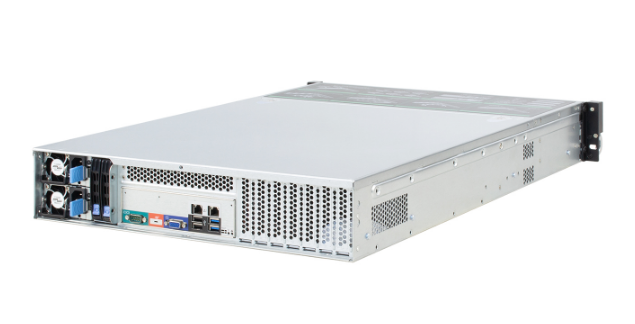

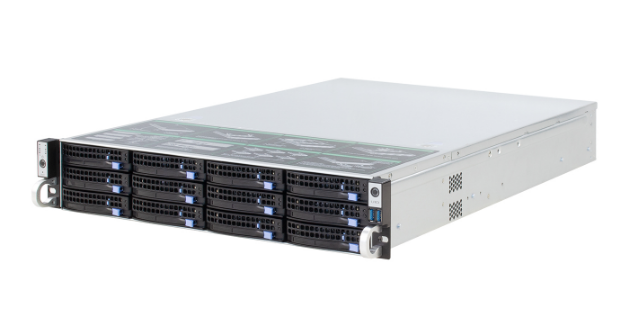

2U Rackmount Storage Server powered by Intel® E5-2600 v3/v4,
The SS-212-C612D is a 12-bay compact 2U Rackmount storage server/NAS for large and extensive scaling of data storage. Its comprehensive data protection technologies, including High Availability, hybrid cloud backup, and server or virtual machine backup approaches, make it a reliable server for massive storage deployment. SS-212-C612D is backed by Armortec’s 3 year limited warranty.
Intel® Xeon® processor E5-2600 v3/v4, E5-1600 v3/v4 family (up to 145W TDP) , Dual Socket R3 (LGA 2011)
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
8 x 288-pin DDR4 DIMM slots,2133/1866/1600MHz ECC DDR4 SDRAM 72-bit ,Up to 256GB DDR4 ECC RDIMM, Up to 512GB DDR4 ECC LRDIMM
Elastic expandability with 1 x PCIe 3.0 x16 slots,4 x PCI-E 3.0 x8 slot, 1 x PCI-E 2.0 x4 slot for installing additional expansion card
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
8 x 288-pin DDR4 DIMM slots,2133/1866/1600MHz ECC DDR4 SDRAM 72-bit ,Up to 256GB DDR4 ECC RDIMM, Up to 512GB DDR4 ECC LRDIMM
Elastic expandability with 1 x PCIe 3.0 x16 slots,4 x PCI-E 3.0 x8 slot, 1 x PCI-E 2.0 x4 slot for installing additional expansion card
Specification: SS-212-C612D
CPU Availability
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
| CPU | Intel® Xeon® processor E5-2600 v3/v4, E5-1600 v3/v4 family (up to 145W TDP) , Dual Socket R3 (LGA 2011) |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | 8 x 288-pin DDR4 DIMM slots,2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, Up to 256GB DDR4 ECC RDIMM, Up to 512GB DDR4 ECC LRDIMM |
| Front drive type | 12 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included) |
| Hot swappable drive | Yes |
| Internal drive type | 3 x 2.5’’ SATA HDD/SSD |
| External port |
2 x USB 3.0 ports 4 x USB 2.0 ports |
| Dimensions (HxWxD) | 88 x 437.5 x 650 mm |
| Weight | - |
| LAN | 2 x RJ45 Gigabit Ethernet LAN ports |
| Wake on LAN/WAN | Yes |
| BMC | Aspeed AST2400 |
| PCIe 3.0 slot |
1 x PCI-E 3.0 x16 slot 4 x PCI-E 3.0 x 8 slot 1 x PCI-E 2.0 x 4 slot High-performance network interface card support |
| Scheduled power on/off | Yes |
| System fan | 4 |
| Power supply | Standard 800W platinum server single power supply; optional 800W 1+1 redundant power supply; optional -48V DC power supply; support 240V high voltage DC power supply |
| Input power voltage | 100~240V AC or 48V DC |
| System Control |
1 x Reset button, 1 x UID SW,1 x Power SW 1 x Power LED, 1 x HDD LED, 1 x NIC LED, 1 x UID LED 1 x OH/FAN Fail LED, 1 X Power Fail LED |
| Supported OS |
Windows Server 2012/2008 Novell SLES 11 SP3 Red Hat Enterprise Linux 7.0 Ubuntu Server 14.04 |
| Operating temperature | 5°C to 35°C |
| Storage temperature | -40°C to 55°C |
| Relative humidity | Non operating, 0% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| 1 | Intel® Xeon® processor E5-2600 v3, E5-1600 v3 family (up to 145W TDP) , Dual Socket R3 (LGA 2011) |
