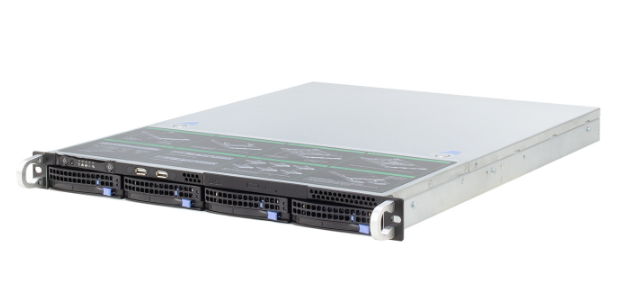

1U Rackmount Storage Server powered by Intel® Xeon® D1500 P


　　The SS-104-D15 is a 4-bay compact 1U Rackmount storage server/NAS for large and extensive scaling of data storage. Its comprehensive data protection technologies, including High Availability, hybrid cloud backup, and server or virtual machine backup approaches, make it a reliable server for massive storage deployment. SS-104-D15 is backed by Armortec’s 3 year limited warranty.
Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor
Dual Channel R/U ECC DIMM(x4) DDR3L 1333/1600MHz , Max 64GB
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
Elastic expandability with 1 x PCIe 3.0 x8(in x16 slot), 1 x PCIe 3.0 x8 for installing additional expansion cards
Specification:                            SS-104-D15
CPU Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor, SoC
Hardware encryption engine Yes (AES-NI)
Memory Dual Channel R/U ECC DIMM(x4) DDR3L 1333/1600MHz, Max 64GB

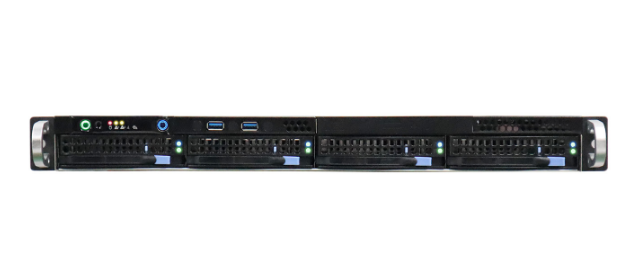

Front drive type 4 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included)
Hot swappable drive Yes
Internal drive type 1 x 2.5’’ SATA HDD/SSD slot
1 x M.2 SSD slot

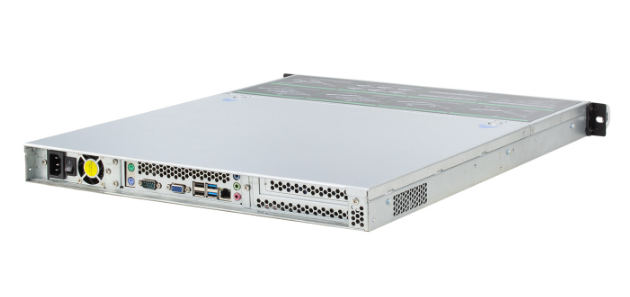

External port 4 x USB 2.0 ports
2 x USB 3.0 ports
1 x VGA port
Dimensions (HxWxD) 44.5 x 437.5 x 560 mm
Weight -
LAN 4 x RJ45 Gigabit Ethernet port
Wake on LAN/WAN Yes
BMC ASPEED AST2400 (NO IPMI)
PCIe 3.0 slot 1 x PCI-E 3.0 x8
1 x PCI-E 3.0 x8(in x16 slots)
High-performance network interface card support
M.2 1 x M.2 slot , support NVME and SATA3.0 SSD automatically
Scheduled power on/off Yes
System fan 4
Power supply Use 500W or 550W power supply
AC/DC input power voltage 100~240V AC/ 48V DC
System Control 1 x Reset button, 1 x Power Button, 1 x UID SW
1 x Power LED, 1 x HDD LED, 1 x NIC LED, 1 x UID LED
1 x ON/FAN Fail LED, 1 X Power Fail LED,
Supported OS Windows v.Next server;
Windows Server 2012 R2;
Windows Server 2012;
Windows Server 2008 R2 SP1;
Windows 7;
Windows 8.1;
 Windows 10;
Red Hat Enterprise Linux Server (RHEL) ;
Novell SuSE Linux Enterprise Server (SUSE) ;
Fedora;
Ubuntu;
CentOS;
Xen & KVM;
Yocto;
FreeBSD
Operating temperature 5°C to 35°C
Storage temperature -40°C to 55°C
Relative humidity Non operating, 0% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
CPU Availability
1 Using the latest Intel® Xeon D series processors, support Intel® Xeon D1500 processor
