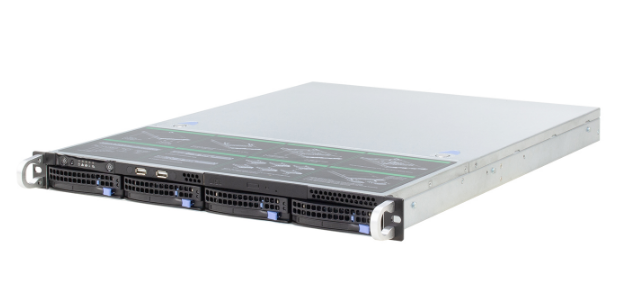

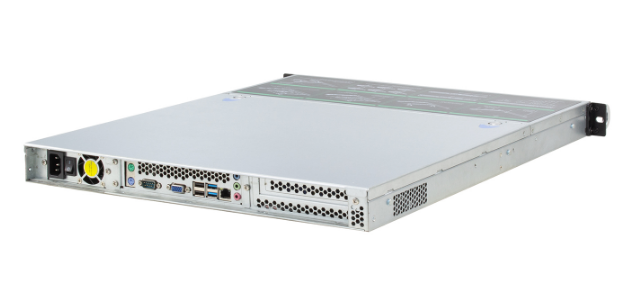

1U Rackmount Storage Server powered by Intel® Xeon® E-2100
SS-104-C246
The SS-104-C246 is a 4-bay compact 1U Rackmount storage server/NAS for large and extensive scaling of data storage. Its comprehensive data protection technologies, including High Availability, hybrid cloud backup, and server or virtual machine backup approaches, make it a reliable server for massive storage deployment. SS-104-C246 is backed by Armortec’s 3 year limited warranty.
Support 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor
Support Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor,Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 x DIMM slots
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
Elastic expandability with 1 x PCIe 3.0 x16 slots for installing additional expansion card
Support Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor,Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 x DIMM slots
A highly scalable rackmount NAS to aptly accommodate large business needs for scalability, suitable for video post-production and massive surveillance deployment
Elastic expandability with 1 x PCIe 3.0 x16 slots for installing additional expansion card
SS-104-C246
1U Rackmount Storage Server powered by Intel® Xeon® E-2100 Processors with 4 x 3.5/2.5 inch HDD bay
Specification: SS-104-C246
CPU Availability
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
1U Rackmount Storage Server powered by Intel® Xeon® E-2100 Processors with 4 x 3.5/2.5 inch HDD bay
Specification: SS-104-C246
| CPU |
8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 x DIMM slots |
| Front drive type | 4 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included) |
| Hot swappable drive | Yes |
| Internal drive type |
2 x 2.5’’ SATA HDD/SSD slot 1 x M.2 2280/22110(SATA/PCIe 2.0 x4 signal) |
| External port |
4 x USB 2.0 ports 2 x USB 3.1 ports |
| Dimensions (HxWxD) | 44.5 x 437.5 x 560 mm |
| Weight | - |
| LAN | 2 x RJ45 Gigabit Ethernet via Intel I210-AT |
| Wake on LAN/WAN | Yes |
| BMC | ASPEED AST2500 |
| PCIe 3.0 slot |
1 x PCI-E 3.0 x16 slot 1 x PCI-E 3.0 x16(in M.2 slot) High-performance network interface card support |
| M.2 | 1 x M.2 slot with PCIe 3.0 x4 /SATA signal |
| Scheduled power on/off | Yes |
| System fan | 6 |
| DC power supply | 300W server dedicated power supply |
| AC input power voltage | 100-240V AC / 48V DC |
| Power frequency | 47~63Hz |
| System Control |
1 x Reset button, 1 x Power Button, 1 x UID SW 1 x Power LED, 1 x HDD LED, 1 x NIC LED, 1 x UID LED 1 x ON/FAN Fail LED, 1 X Power Fail LED, |
| Supported OS |
Ubuntu 18.04 LTS, Ubuntu 17.10.1, CentOS 7.4, CentOS 7.5, Windows Server 2016, Windows 10, Windows Server 2012 R2 |
| Operating temperature | 5°C to 35°C |
| Storage temperature | -40°C to 55°C |
| Relative humidity | Non operating, 0% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| 1 | 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor |
| 2 | Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor |
