Armortec Custom 8 Bay Nas Case Support 2.5 OR 3.5＂ SDD HDD
NAS-08-SK2P
OEM ODM Armortec 8 bay NAS Mini Itx storage server case with Intel 3855U Dual-Core Fans Power Supply
Feature:

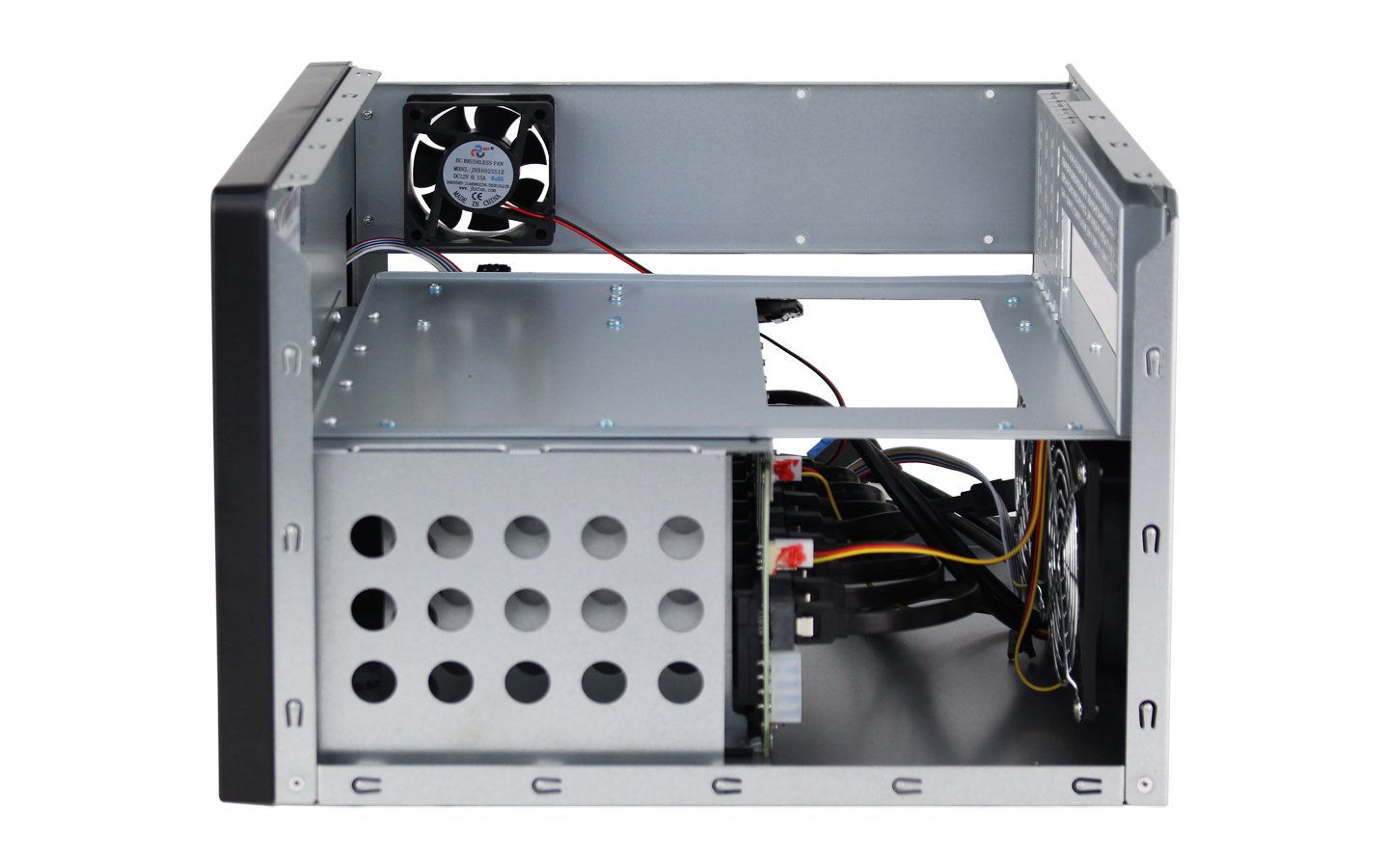

System fan cooling structure, sheet metal material
Integrate @Intel Skylake-U 3855U CPU (Skylake-U and Kabylake-U series CPU OPTIONAL)
Dual-Core Dual-Thread processor
Supports 8 x 2.5” or 3.5” SSD/HDD ,2x9025S fan,1x6025S fan
Support 1x mSATA SSD
Mini-ITX Main board structure
DDR4 SO-DIMM 2400MHz memory, Max support 16GB
Supports 2 RJ45 ports(on-board), Max 4 x RJ45 ports by changing USB ports
NAS system that can integrate computers, routers, and set-top boxes into one, replacing traditional cloud disks, computers, routers, and set-top boxes

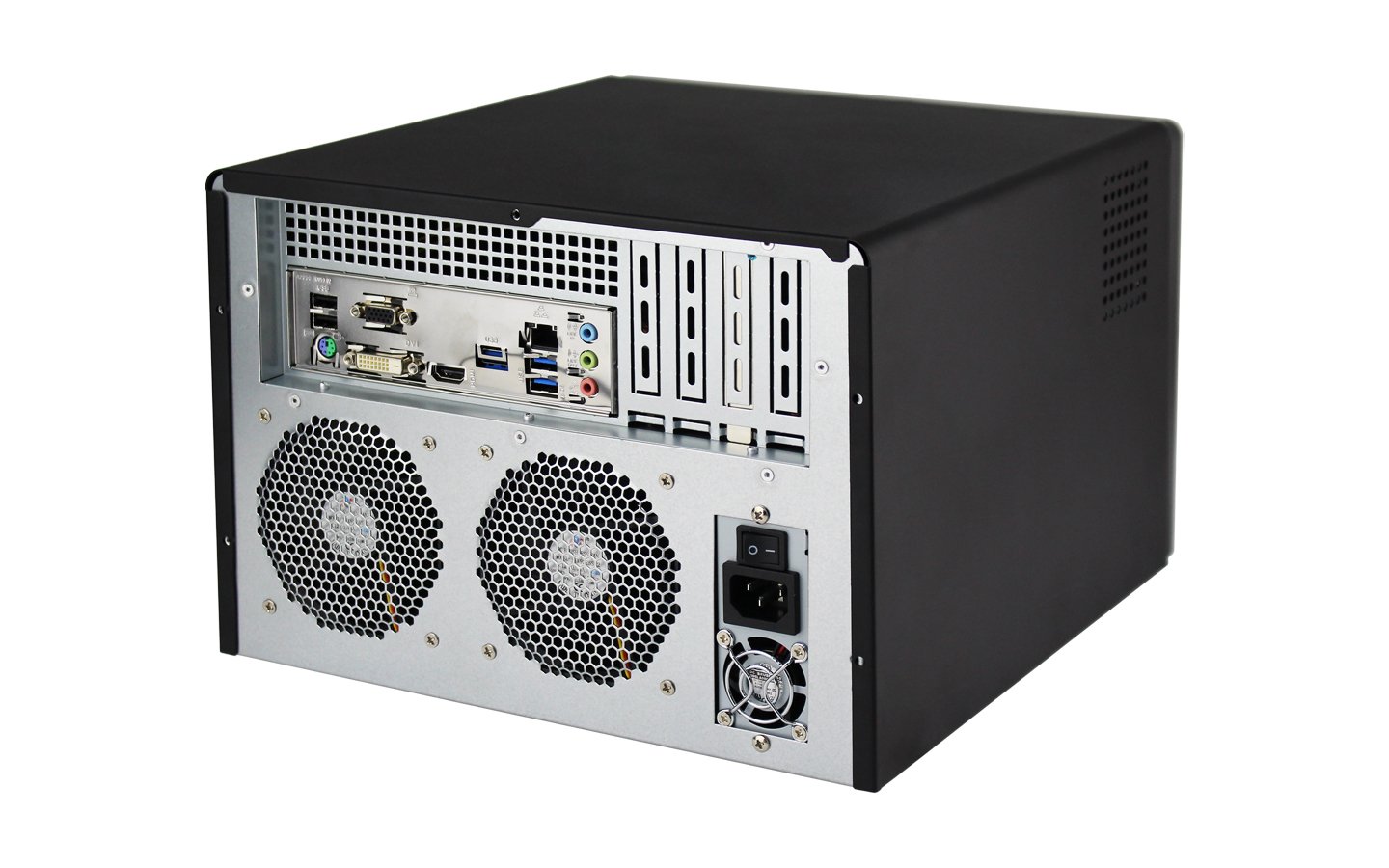

The IO ports in the image might be different from the real product, please refer to the spec sheet for correct IO details.
The IO ports in the image might be different from the real product, please refer to the spec sheet for correct IO details.
|
Model |
NAS-08-SK2P |
|
|
Chassis |
Material/structure |
Sheet metal material, system fan cooling structure |
|
Color |
Black |
|
|

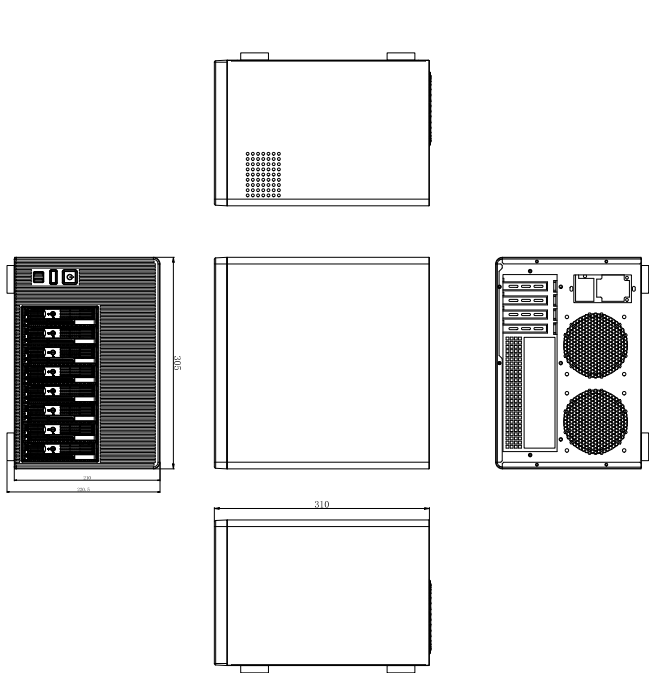

Dimensions (L x W x H) |
310×305×210mm |
|
|
Installation |
Desktop |
|
|
Motherboard |
CPU |
Integrated @Intel Skylake-U 3855U CPU Dual-Core |
|
System chip |
SOC |
|
|
Display |
Integrated Intel® 1x HDMI1.4 (Max: 3840 x 2160@30Hz) |
|
|
RAM |
Support DDR4 SO-DIMM memory slot, Support 2400MHz memory, Max support 16GB
|
|
|
Front panel interface |
Power |
1 x Power switch |
|
Hard drive |
8 x SATA hard disk |
|
|
USB |
2x USB 3.0 port |
|
|
|
LED |
Power LED*1,HDD LED*1,Power SW*1,Reset*1 |
|
Rear panel interface |
Display interface |
1 x HDMI1.4 port (Max: 3840 x 2160@30Hz) |
|
LAN |
2 x I211AT Gigabit network card, support Wake on LAN/PXE function |
|
|
USB |
2 x USB3.0 port |
|
|
COM |
1x COM -RS232 Serial interface |
|
|
Audio |
Realtel ALC662-VDO 1x Audio_out + 1x Mic_in |
|
|
PS/2 |
1 x PS/2 keyboard and mouse interface |
|
|
Power supply |
1 x AC power connector, ATX power supply |
|
|
Storage |
SATA |
8 x 2.5/3.5-inch hard disk |
|
SSD |
1 x MSATA SSD expansion, SSD transmission speed up to 6Gbps |
|
|
Expand |
PCIE |
4 x PCIE slot |
|
Software Support |
Microsoft Windows |
Windows7, 8.1, 10;Linux |
|
Watch Dog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
|
Power requirements |
Power type |
Flex 1U power supply / Standard1U power supply |
|
Voltage input |
AC 110~220V |
|
|
Environment |
Operating temperature |
-10℃~60℃ |
-
