Armortec OEM ODM 6 bay NAS Storage Server Support 3.5＂ HDD

　　

NAS-06-SK2P

OEM ODM  Armortec 6 bay NAS  Mini Itx storage server case with Intel 3855U Dual-Core Fans Power Supply

Feature:



System fan cooling structure, sheet metal material

Integrate @Intel Skylake-U 3855U CPU (Skylake-U and Kabylake-U series CPU OPTIONAL)

Dual-Core Dual-Thread processor

Supports 6 x 2.5” or 3.5” SSD/HDD ,2x8025 fan

Support 1x mSATA SSD

Mini-ITX Main board structure

DDR4 SO-DIMM 2400MHz memory, Max support 16GB

Supports 2 RJ45 ports(on-board), Max 4 x RJ45 ports by changing USB ports

NAS system that can integrate computers, routers, and set-top boxes into one, replacing traditional cloud disks, computers, routers, and set-top boxes



The IO ports in the image might be different from the real product, please refer to the spec sheet for correct IO details.

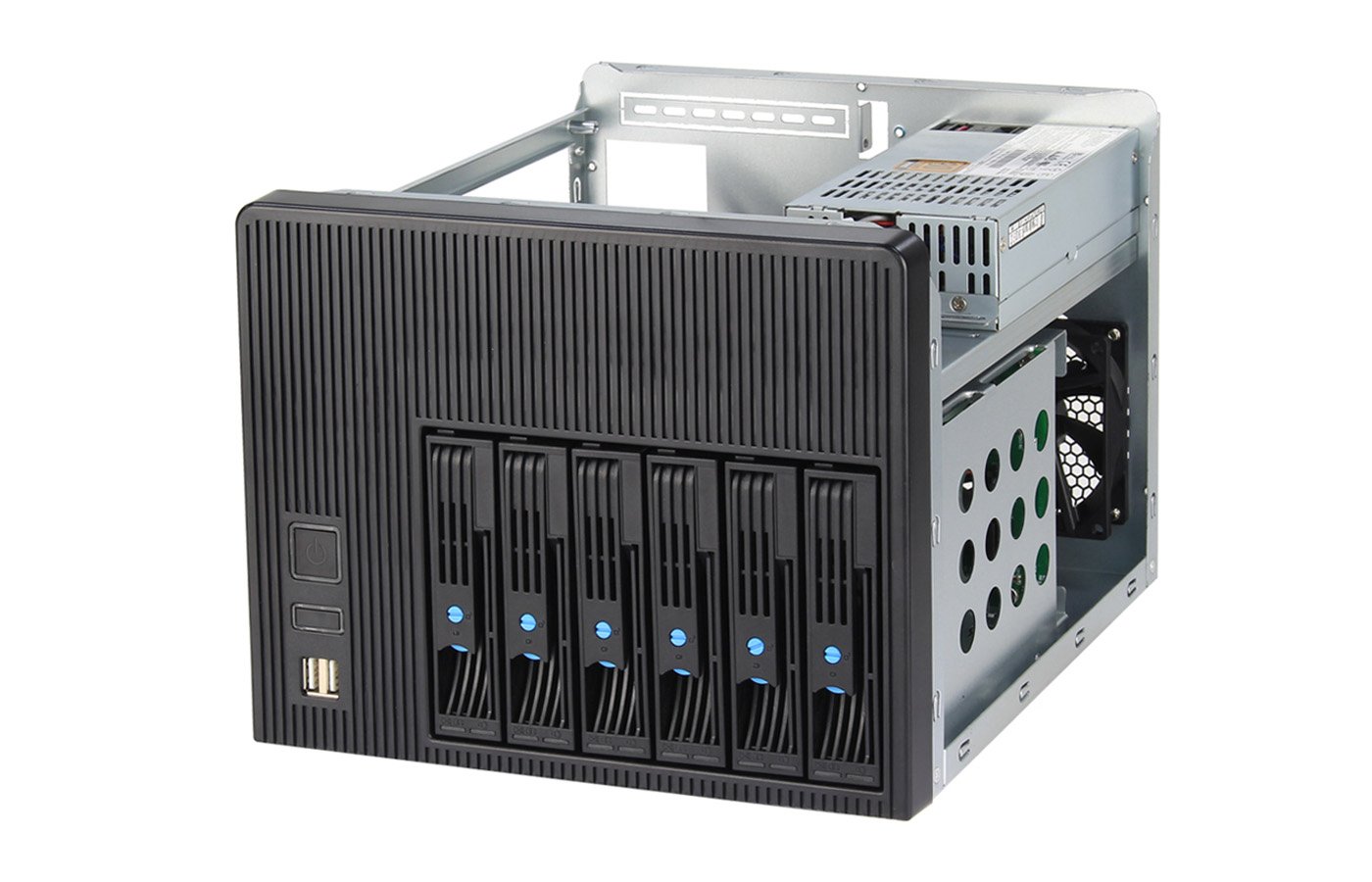

Armortec OEM ODM 6 bay NAS Storage Server Support 3.5" HDD Hot Swap Drive Flex 1U power supply

  Specification:

Model

NAS-06-SK2P

Chassis

Material/structure

Sheet metal material, system fan cooling structure



Color

Black

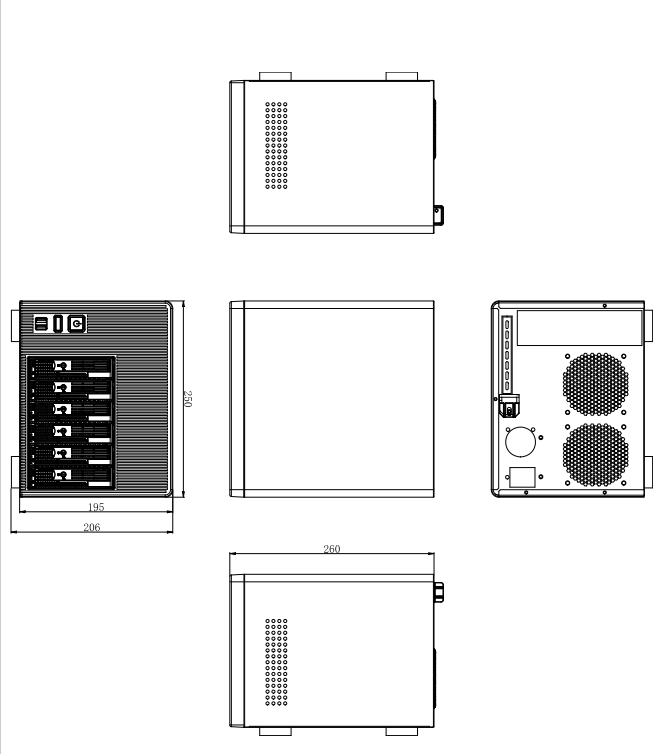

Dimensions (L x W x H)

260×250×195mm



Installation

Desktop

Motherboard

CPU

Integrated @Intel Skylake-U 3855U CPU Dual-Core



System chip

SOC



Display

Integrated Intel® 1x HDMI1.4 (Max: 3840 x 2160@30Hz)



RAM

Support DDR4 SO-DIMM memory slot, Support 2400MHz memory, Max support 16GB

Front panel interface

Power

1 x Power switch



Hard drive

6 x SATA hard disk



USB

2x USB 2.0 port



LED

Power LED*1,HDD LED*1,Power SW*1,Reset*1

Rear panel interface

Display interface

1 x HDMI1.4 port (Max: 3840 x 2160@30Hz)



LAN

2 x I211AT Gigabit network card, support Wake on LAN/PXE function



USB

2 x USB3.0 port



COM

1x COM -RS232 Serial interface



Audio

Realtel ALC662-VDO

1x Audio_out + 1x Mic_in



PS/2

1 x PS/2 keyboard and mouse interface



Power supply

1 x AC power connector, ATX power supply

Storage

SATA

4 x 2.5/3.5-inch hard disk



SSD

1 x MSATA SSD expansion, SSD transmission speed up to 6Gbps

Expand

PCIE

1 x PCIE slot

Software Support

Microsoft Windows

Windows7, 8.1, 10;Linux



Watch Dog

Support hardware reset function (256 levels, 0~255 seconds)

Power requirements

Power type

Flex 1U power supply



Voltage input

AC 110~220V

Environment

Operating temperature

-10℃~60℃
