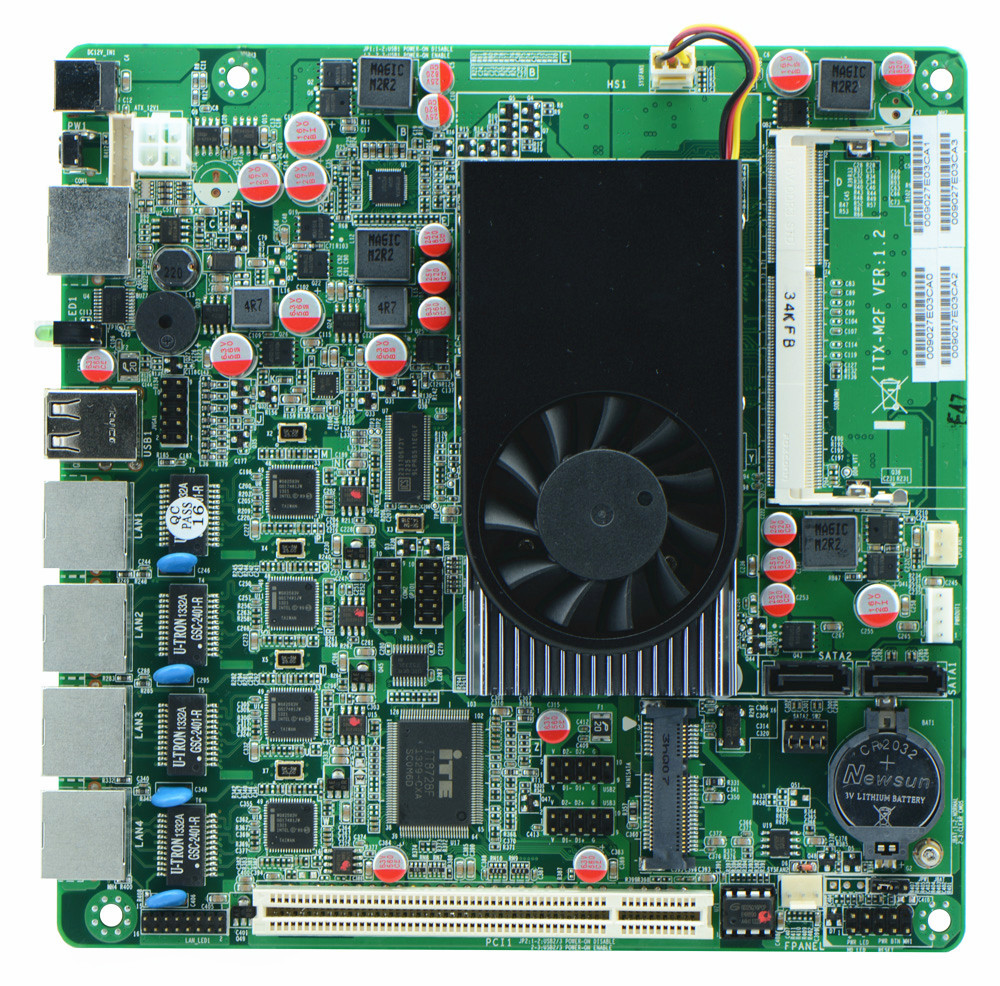

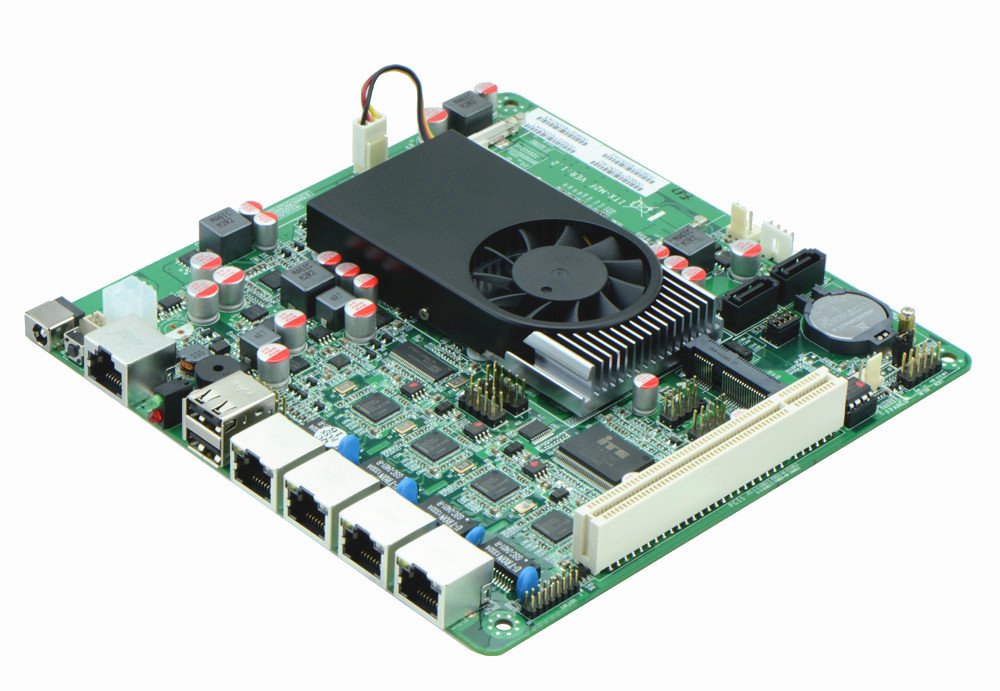

Intel Atom D2550 4LAN firewall motherboard
Onboard Intel Atom D2550 dual core processor(1.86Ghz)
Deploy Intel NM10 express chipset
Supports DDRIII SO DIMM memory, Max. 4GB
Integrated with 4 Intel 82583V 1000M Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports
Supports 2 USB 2.0 headers
Supports SSD, SATA HDD storage
Mini ITX Form Factor(170mm x 170mm)
Onboard Intel Atom D2550 dual core processor(1.86Ghz)
Deploy Intel NM10 express chipset
Supports DDRIII SO DIMM memory, Max. 4GB
Integrated with 4 Intel 82583V 1000M Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports
Supports 2 USB 2.0 headers
Supports SSD, SATA HDD storage
Mini ITX Form Factor(170mm x 170mm)
Deploy Intel NM10 express chipset
Supports DDRIII SO DIMM memory, Max. 4GB
Integrated with 4 Intel 82583V 1000M Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports
Supports 2 USB 2.0 headers
Supports SSD, SATA HDD storage
Mini ITX Form Factor(170mm x 170mm)
| Product Model | FMM2F |
| CPU | Onboard Intel Atom D2550 dual core processor(1.86GHz) |
| Chipset | Intel NM10 express chipset |
| Memory | 1 x SO-DIMM DDR3 memory slot, supports 1066/800 Mhz, Max. 4GB. |
| Video | Integrated Intel GMA3600 graphics core, supports VGA display ouput |
| Expansion Slot | 1 x MSATA slot, supports SSD, USB Wifi |
| 1 x PCI slot | |
| LAN | Integrated 4 x Intel 82583V 1000M Ethernet card, support Wake On LAN |
| Storage | 2 x SATAII HDD interface(Select among SATA2 and SSD) |

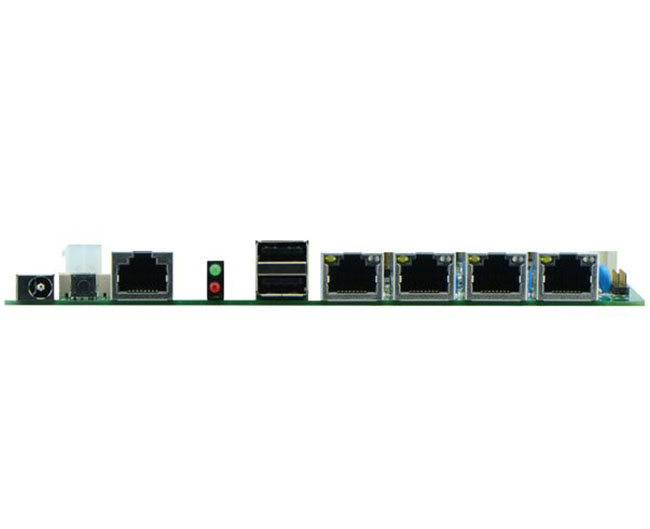

| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB 2.0 ports | |
| 4 x RJ-45 ports | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| 1 x 12V DC_JACK input interface(on the side) | |
| Internal I/O Interface | 1 x JVGA header, 2 x 5-pin |
| 1 x LAN_LED header, 2 x 13-pin | |
| 1 x LPT interface | |
| 4 x USB 2.0 headers | |
| 1 x RS232 header | |
| 1 x PS/2 keyboard and mouse interface | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 1 x ATX_12V, can be used as +12V input and output power supply interface | |
| 2 x PWROUT, HDD power supply interface | |
| Fan connector | 1 x CPU Fan connector, and 2 x System Fan connectors, 3-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 16MB DPI Flash ROM |
| Watch Dog | Integrated in the chip(256 level, 0-255 seconds) |
| PSU | DC_12V single PSU |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 170mm x170mm |
-
