Intel Core i3 3217U EPIC industrial motherboard DC12V
Integrated Intel Core i3 3217U dual core processor(1.8GHz)
Intel NM70 express chipset
Built in Intel HD graphics core, provides VGA/HDMI/LVDS display output
Onboard DDR3 2GB express memory, Max. 8G
2 mini PCIe slot, supports SSD/wireless Wifi/3G module
Provides 6 RS232 COM headers, COM2 supports RS422/485 mode
Supports 2 Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Integrated Intel Core i3 3217U dual core processor(1.8GHz)
Intel NM70 express chipset
Built in Intel HD graphics core, provides VGA/HDMI/LVDS display output
Onboard DDR3 2GB express memory, Max. 8G
2 mini PCIe slot, supports SSD/wireless Wifi/3G module
Provides 6 RS232 COM headers, COM2 supports RS422/485 mode
Supports 2 Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Intel NM70 express chipset
Built in Intel HD graphics core, provides VGA/HDMI/LVDS display output
Onboard DDR3 2GB express memory, Max. 8G
2 mini PCIe slot, supports SSD/wireless Wifi/3G module
Provides 6 RS232 COM headers, COM2 supports RS422/485 mode
Supports 2 Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
| Product Model | EPIC-N80_i3 |
| CPU | Integrated Intel Core i3 3217U dual core processor 1.8GHz, TDP 17W |
| Chipset | Intel NM70 express chipset |
| Memory | Onboard DDR3 2GB express memory(4GB, 8GB available) |
| Video | Integrated Intel HD4000 Graphics core, provides VGA/HDMI/LVDS display output, |
| LVDS support dual channel 24 bit, supports sync/async | |
| Expansion Slot | 1 x mini PCI-e slot, supports wifi/3G module |
| 1 x MSATA slot, supports SSD, WIFI, transit rate of SSD can reach 6Gb/s | |
| LAN | 2 x Intel 82583V 1000M Ethernet controller, supports Wake On Lan |
| Storage | 1 x SATA2 HDD interface, transit rate can reach 3Gb/s |
| 1 x JSATAII slot, supports SATA HDD | |
| Audio | Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out, power amplifier |

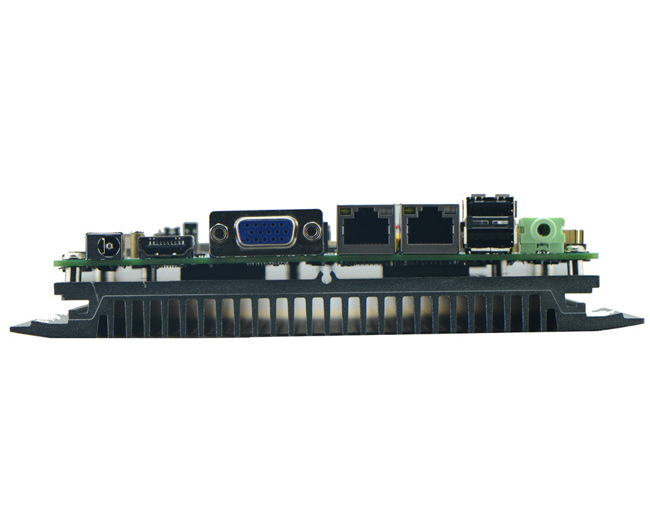

| Rear I/O Panel | 1 x 12V DC_JACK input |
| 1 x HDMI port | |
| 1 x VGA port | |
| 2 x USB 2.0 ports | |
| 2 x RJ45 LAN ports | |
| 1 x Line out(green) | |
| 1 x MIC(red) | |
| 1 x POWER, 1 x RESET, 1x LED1(POWERLED/HDDLED) | |
| Internal I/O Interface | 1 x LVDS connector, 2 x15-pin |
| 1 x JVGA1 header, same signal with DB15, 2 x 5-pin | |
| 6 x RS232 connectors, COM2 supports 485/422 function | |
| 1 x JLPC header, 2 x 6-pin | |
| 4 x USB 2.0 connectors | |
| 1 x PS/2 keyboard and mouse interface, 1 x 6-pin | |
| 1 x AUDIO header, front panel audio interface, 2 x 5-pin | |
| 1 x FP1 front panel function button and indicator light header, 2 x 5-pin | |
| 1 x SIM slot | |
| 2 x JSATA2 headers, 1 x 5-pin | |
| 1 x PWROUT HDD power supply headers | |
| 1 x LVDS INVERTER connector | |
| Fan connector | 1 x CPU Fan connector, 3-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 32MB Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | DC_12V single power supply input |
| Working Temp | -20℃～70℃ |
| Storing Temp | -40℃～80℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 148mm x 102mm |
-
