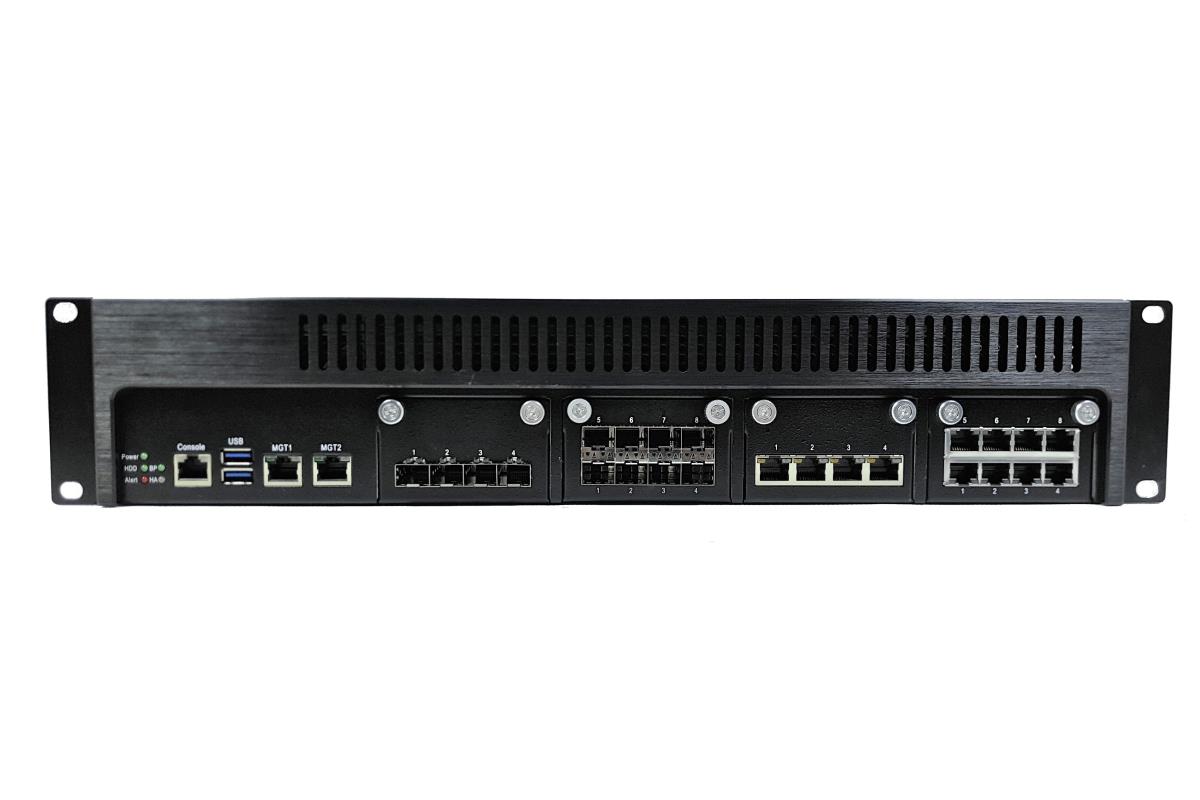

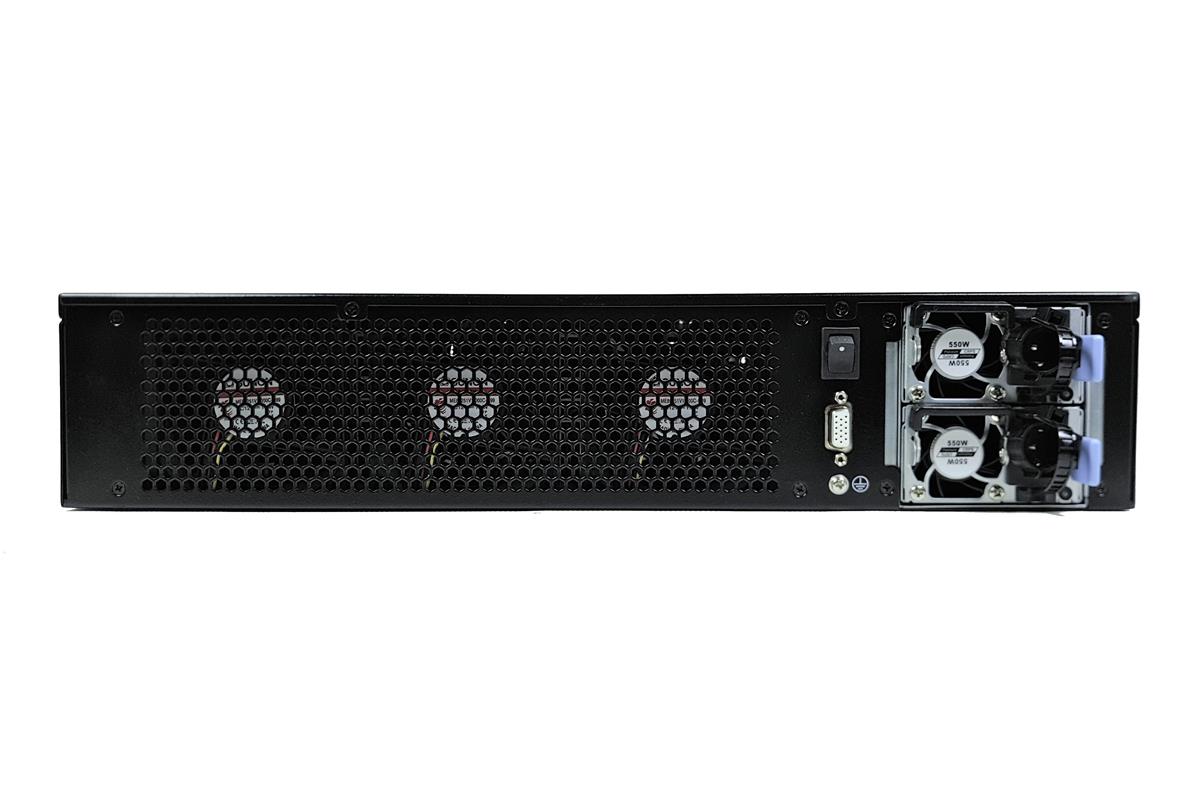

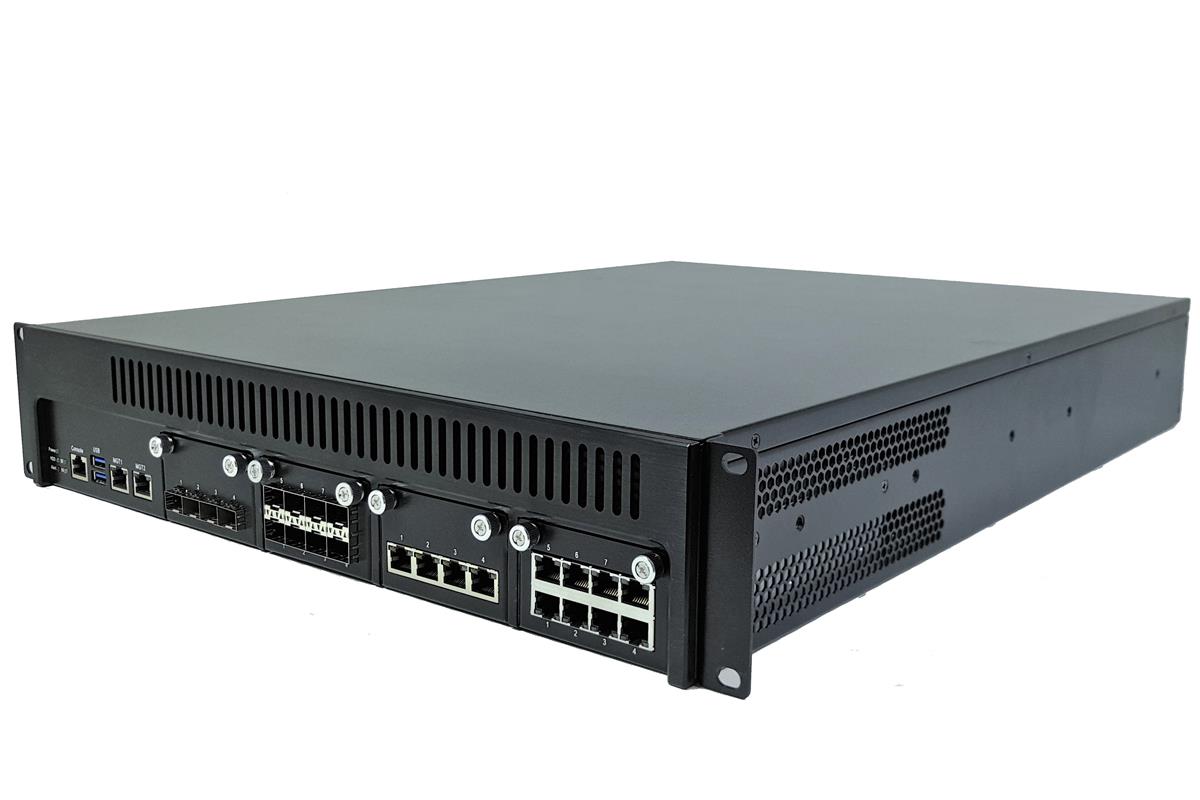

2U Rackmount Network Appliance with Intel Xeon E5 2600 v3/v4
Introduction:
ATL-612N4 uses Intel Wellsburg C612 server-class PCH, supports dual Intel Haswell EP E5-2600 V3/V4 series Xeon processor; CPU uses dual QPI bus interconnection, speed up to 9.6 GT / s; CPU integrated memory control It supports four channels of DDR4 2133MHz ECC/Non-ECC memory and supports up to 512GB capacity.
The network interface adopts full modular design, standard 4 PCIe x8 expansion slots, up to 8 expansion, extended network control chip with Intel I350AM4/82599ES/XL710, network interface formable 4SFP, 4RJ45, 2SFP2RJ45, 4SFP4RJ45, 8SFP, 8RJ45, 2SFP+, 4SFP+, 2QSFP+.
The ATL-612N4 is targeted at high-end network security and storage hardware platforms for application delivery, Web firewall, UTM, SOC, database security auditing, network traffic management, telecom data collection and many more. It has strong computing power, excellent network performance, fast data exchange and flexible expansion.
Feature:
Adopt Intel C612 chipset LGA 2011 platform
Equipped with two Intel® E5-2600V3/V4 series processors
Onboard 8 DDR4 four-channel RDIMM memory slots, up to 2400MHz, 256GB
2 RJ45 Gigabit electrical ports onboard, up to 8 network modules
Adopt Intel C612 chipset LGA 2011 platform
Equipped with two Intel® E5-2600V3/V4 series processors
Onboard 8 DDR4 four-channel RDIMM memory slots, up to 2400MHz, 256GB
2 RJ45 Gigabit electrical ports onboard, up to 8 network modules
ATL-612N4
2U Rackmount Network Appliance with Intel Xeon E5 2600 v3/v4 processors, 4 x NIC expansion, 2 x RJ45 onboard, 1 x console
Specification: ATL-612N4
Packing List
Optional Accessories
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
2U Rackmount Network Appliance with Intel Xeon E5 2600 v3/v4 processors, 4 x NIC expansion, 2 x RJ45 onboard, 1 x console
Specification: ATL-612N4
| Model No. | ATL-612N4 | |
| System | 2U Rackmount | |
| Platform | Processor Options | Support for two IntelE5-2600V3/V4 series processors LGA2011 |
| Chipset | Intel C612 chipset | |
| Security Acceleration | N/A | |
| System Memory | Technology | Onboard 8 DDR4 Quad RDIMM Memory Slots |
| Max. Capacity | Maximum support 2400MHz, 256GB | |
| Networking | Ethernet Ports |
Onboard 2 RJ45 Gigabit electrical ports with Intel I210AT chip Detachable design, support 8 network module expansion, up to 66 Gigabit Ethernet ports |
| Bypass | Depending on the expansion module | |
| USB | Front 2 USB3.0 ports | |
| Storage | HDD/SSD Support | 5 SATA 6Gb/S interfaces, 1 Msata, 1 onboard CF card slot |
| Expansion | PCIe |
1x PCIe X8 front slots 2 PCI-E 3.0 (x8) built-in slots (4 expansion options) |
| Management port | Management port |
Front 1 RJ45 serial port 1 onboard 2x5-pin COM2 interface 1 VGA port on the rear panel |
| Indicator light | Indicator light | Power status light, data transmission status light, alarm indicator |
| Working temperature and humidity | Work | 5~40°C 20%~90%℃ |
| Storage | -10~70°C 5%~95% | |
| Size | 440 (width) x 600 (deep) x 88.5 (height) mm | |
| Power configuration | Power configuration |
510W AC single power supply (DC optional) 550W AC redundant power supply (DC optional) |
| Approvals and Compliance | CE, FCC, RoHS | |
| 1 | SATA data cable |
| 2 | Power cord 3P 180cm, China |
| 3 | Rack ears |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
