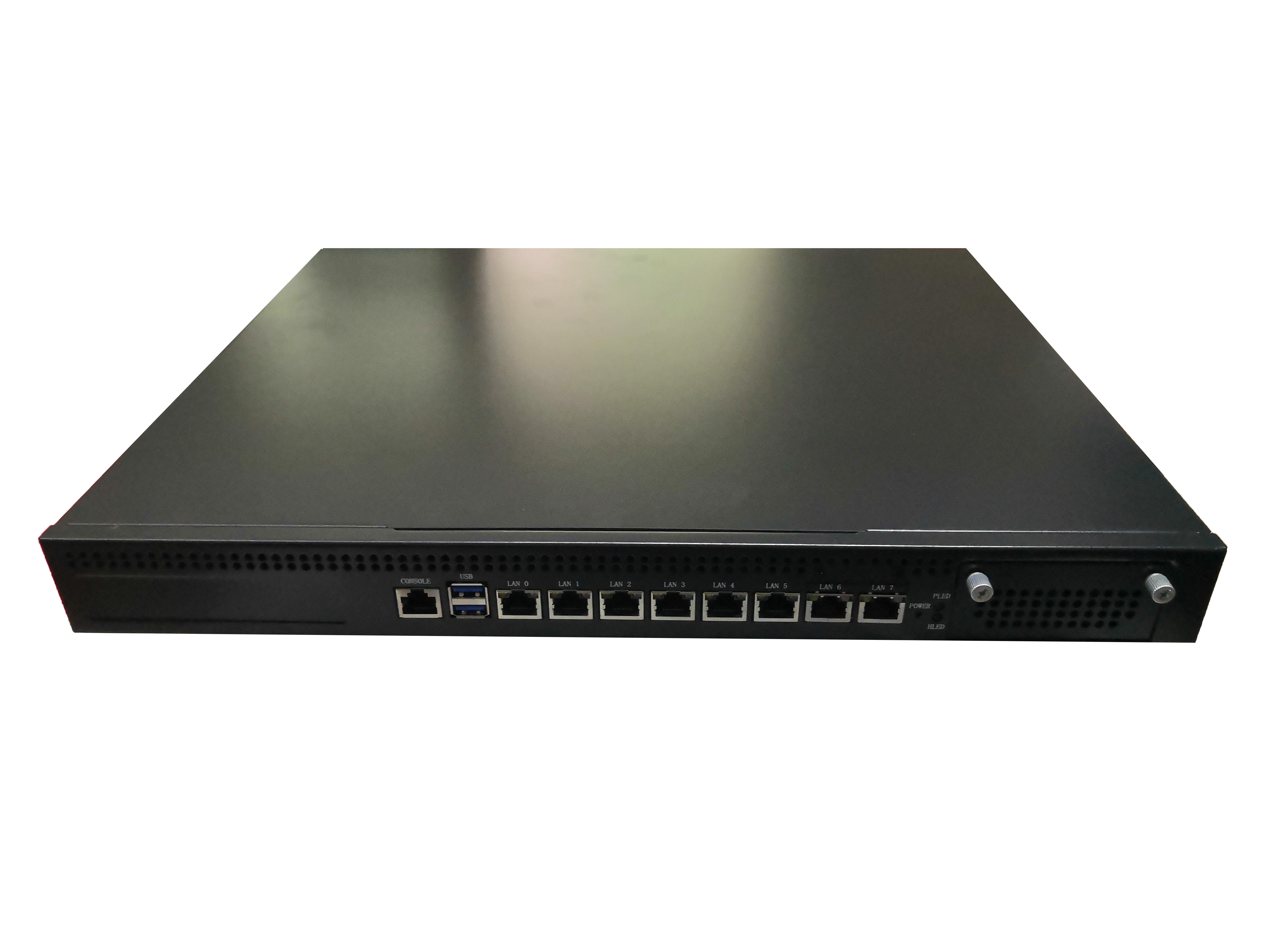

1U Rackmount Network Appliance with Intel Skylake 6th/7th Ge
1U Rackmount Network Appliance with Intel Skylake 6th/7th Gen Core i3/i5/i7, 8 x RJ45 LAN(or 6 x RJ45 + 2 x GbE SFP), 1 x NIM slot, mSATA
Supports LGA1151 6th/7th Gen Core i3/i5/i7 Pentium/Celeron processors
Deploy Intel Intel B150 express chipset
Supports 2 x DDR4 SO-DIMM memory, Max. 32GB
Integrated with 8 x Intel i211 GbE Ethernet cards or 6 x GbE RJ45 + 2 x GbE SFP, supports Wake On LAN, PXE booting
Supports 1 x NIM slot
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 4 x USB 2.0 headers, 2 x USB 3.0 ports
Supports SSD, SATA HDD storage
Deploy Intel Intel B150 express chipset
Supports 2 x DDR4 SO-DIMM memory, Max. 32GB
Integrated with 8 x Intel i211 GbE Ethernet cards or 6 x GbE RJ45 + 2 x GbE SFP, supports Wake On LAN, PXE booting
Supports 1 x NIM slot
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 4 x USB 2.0 headers, 2 x USB 3.0 ports
Supports SSD, SATA HDD storage
Specification: FW-B158-1N
Compatible NIMs
Ordering Information
Model No. | FW-B158-1N | |
Form Factor | 1U 19” Rackmount | |
Platform | Processor Options | Intel Core i7/i5/i3, Pentium, Celeron(B150 chipset) |
CPU Socket | 1x LGA1151 | |
Chipset | Intel B150 | |
Security Acceleration | AES-NI | |
BIOS | AMI SPI Flash BIOS | |
System Memory | Technology | DDR4 2400/2133 MHz |
Max. Capacity | 32GB | |
Socket | 2x 260pin SODIMM | |
Networking | Ethernet Ports |
8x GbE RJ45 Intel i211 or 6 x GbE LAN + 2 x GbE SFP 1 x NIM slot |
Bypass | 2 x pairs(Optional) | |
I/O Interface | Reset Button | - |
LED | Power/Storage | |
Power Button | 1x Power button | |
Console | 1x RJ45 | |
USB | 2x USB 3.0 | |
LCD Module | - | |
Display | 1x VGA | |
Power Input | AC power inlet on PSU | |
Storage | HDD/SSD Support | 2x 2.5'' bays |
Onboard Storage | 1x m-SATA | |
Expansion | PCIe | 1x PCIe X8 |
Mini-PCIe | 1 x Mini PCIe(For WiFi and 4G) | |
Miscellaneous | Watchdog | Yes |
Internal RTC with Li Battery | Yes | |
TPM | - | |
Cooling | Processor | CPU fan |
System | 2 x cooling fans | |
Environmental Parameters | Temperature | 0℃~45℃/ -20℃~70℃ |
Humidity |
5 ~ 90% non condensing / 5 ~ 95%, non condensing |
|
System Dimensions | (WxHxD) | 428x44x321mm |
Weight | 4.5 kg | |
Package Dimensions | (WxHxD) | 510x130x440mm |
Weight | 5.2 kg | |
Power | Type/Watts |
220W single ATX PSU 300W redundant ATX PSU(Optional) |
Input | 90~264V@47~63Hz | |
Approvals and Compliance | CE, FCC Class B |
Slim Module | Port | Chipset | BYPASS |
NIC-0003-2WF | 2 x 10GbE SFP | Intel 82599ES | N/A |
NIC-0003-4C | 4 x GbE RJ45 | Intel i350-AM4 | N/A |
NIC-0003-4F | 4 x GbE SFP | Intel i350-AM4 | N/A |
NIC-0003-4WF | 4 x 10 GbE SFP+ | Intel XL710 | N/A |
Part number | PCH | DDR4 | RJ45 | SFP | Bypass | Console | USB 3.0 | 2.5'' HDD | 3.5'' HDD | PCIe | Power |
FW-B158-1N80S | B150 | 2 | 8 x Intel i211 | - | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | 220W single ATX |
FW-B158-1N80D | B150 | 2 | 6 x Intel i211 | 2 | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | 300W Redundant |
FW-B158-1N62S | B150 | 2 | 8 x Intel i211 | - | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | 220W single ATX |
FW-B158-1N62D | B150 | 2 | 6 x Intel i211 | 2 | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | 300W Redundant |
-
