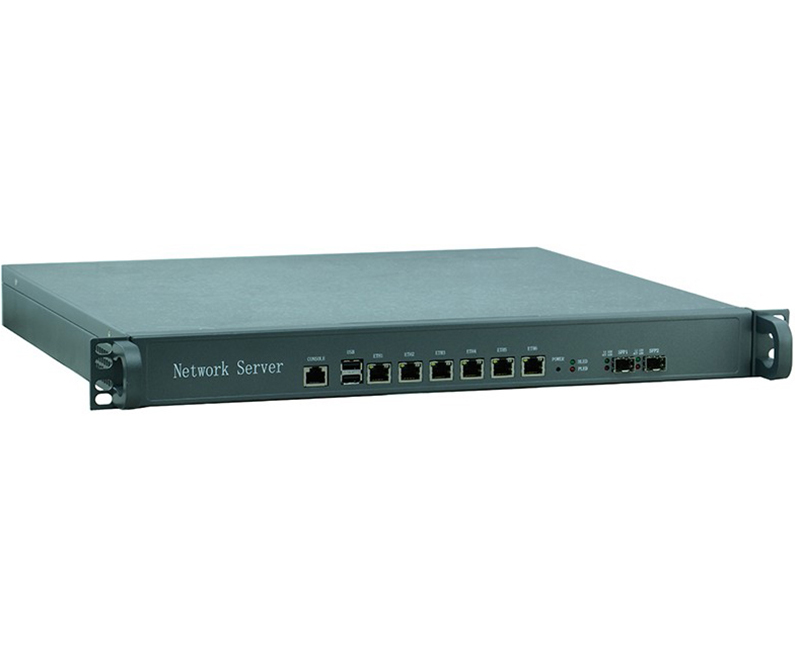

Intel Celeron 1037U onboard 1U fireall PC 6 GbE LAN
Adopts the dedicated multi Ethernet application scheme to design
Based on the latest Intel NM70 chipset, supporting 4 PCI-E 1x high end GbE channel
Onboard Intel Celeron 1037U dual core processor(1.86Ghz)
Supports DDRIII SO DIMM memory, Max. 8GB
Integrated with 4 Intel 82583V 1000M Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports, 2 USB2.0
Supports SSD, SATA HDD storage
Thank you for choosing the FWD-7061. The system is powered by the newest Intel Celeron 1037U Processors, codenamed Ivy Bridge, with the Intel SoC Series Chipset. It supports up to 8GB of DDR3 system memory at 1600MHz on single-channel DIMM banks. The FWD-7061 is equipped with advanced I/O capacity which includes an RJ-45 console port, one PCIe X8 slot directly connected to the CPU(PCIe standard 2.0), one mini PCIe slot (PCIe Generation 2.0), 2 Serial-ATA ports (comply with SATA Standard 2.0), 1 x notebook HDD slot, 1 x M.2 slot, a mini SATA slot and a CompactFlash slot.
The onboard Ethernet ports be configured with bypass depending on the module specification.
The onboard Ethernet ports be configured with bypass depending on the module specification.
Adopts the dedicated multi Ethernet application scheme to design
Based on the latest Intel NM70 chipset, supporting 4 PCI-E 1x high end GbE channel
Onboard Intel Celeron 1037U dual core processor(1.86Ghz)
Supports DDRIII SO DIMM memory, Max. 8GB
Integrated with 4 Intel 82583V 1000M Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 RS232 ports, 2 USB2.0
Supports SSD, SATA HDD storage
| Model No. | FWD-7061 | |
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Intel Celeron 1037U 1.80GHz Dual Core |
| CPU Socket | Onboard | |
| Chipset | NM70 | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204pin SODIMM | |
| Networking | Ethernet Ports | 6x GbE RJ45 Intel 82583V or |
| 6x GbE RJ45 Intel 82574L | ||
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x ATX Power switch, 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 2x 2.5'' bays or |
| 1x 3.5'' bay | ||
| Onboard Storage | 1x m-SATA, 1x CF(signal alternative to each other) | |
| Expansion | PCIe | - |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 2x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 430x44.5x280mm |
| Weight | 4.2 kg | |
| Package Dimensions | (WxHxD) | 520x130x360mm |
| Weight | 5.4 kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
