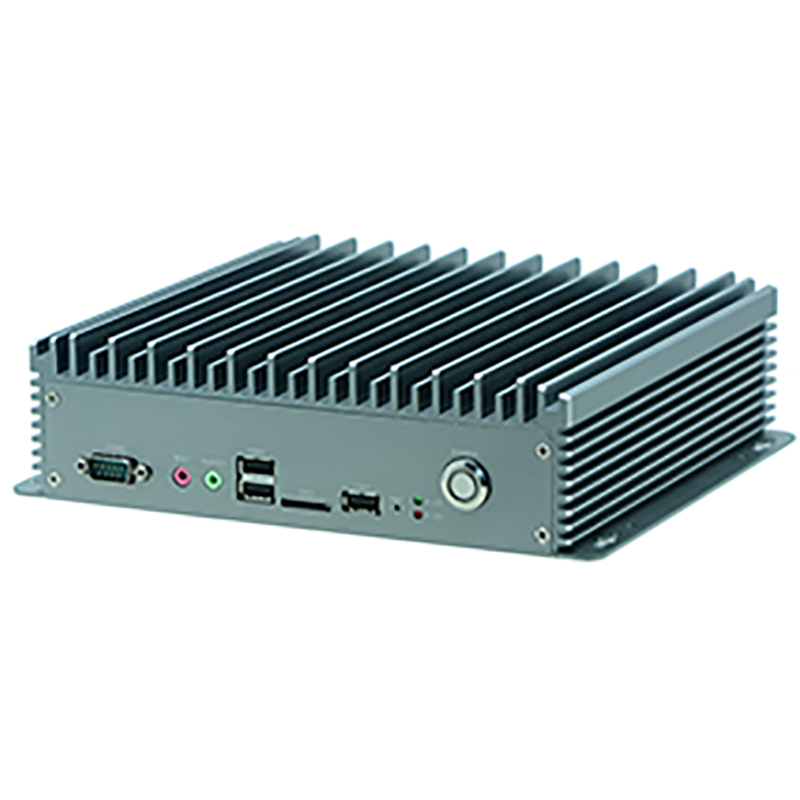

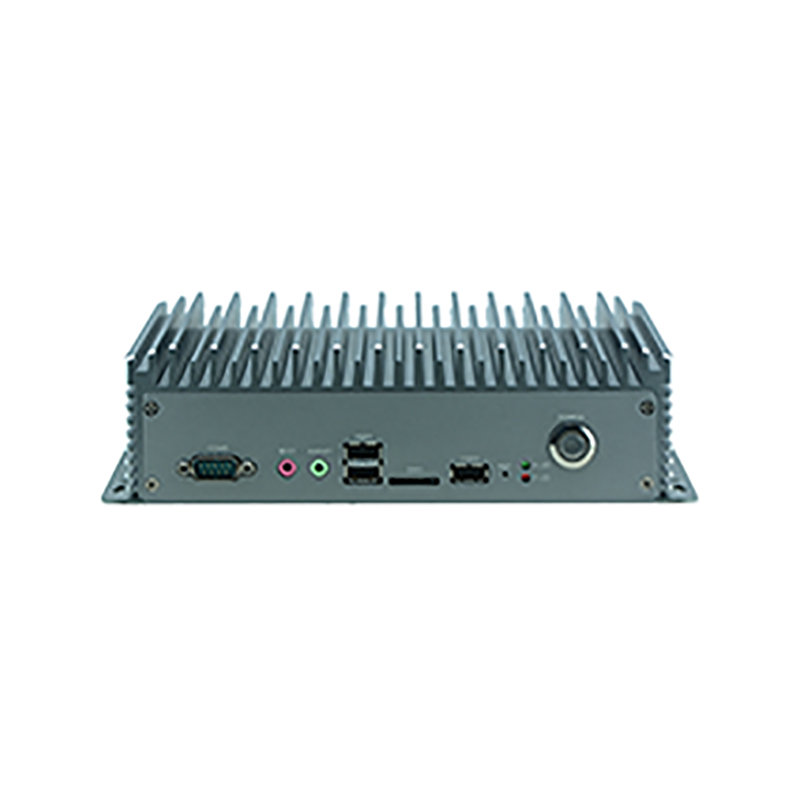

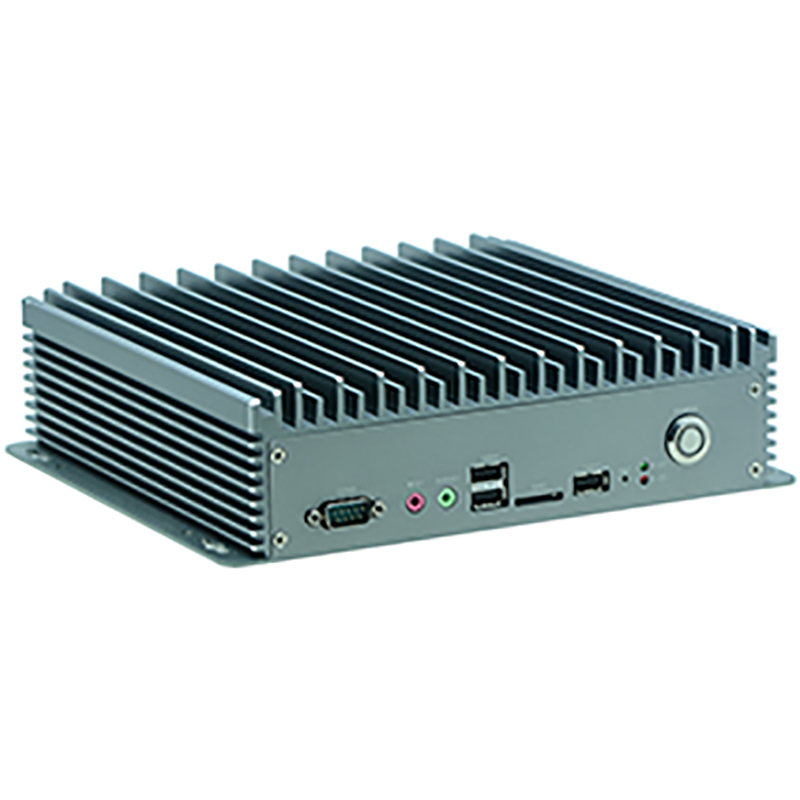

Small Form Factor Embedded Industrial Computer powered by Ce
Fanless heatsink structure
All aluminum chassis, compact structure and flexible installing
Integrated Intel Celeron J1900 Quad Core Quad Thread Processors
Support WIFI/4G module, providing onboard SIM expansion slot
Supports 1*VGA
Supports 2 x Intel WGI211AT GbE, Supports Wake-On-LAN, PXE boot
Supports 6 x RS232, COM1/2 supports 5V/12V electricity, COM3-6 supports RS485/RS422
Supports 7 x USB 2.0, 1 x SIM slot
All aluminum chassis, compact structure and flexible installing
Integrated Intel Celeron J1900 Quad Core Quad Thread Processors
Support WIFI/4G module, providing onboard SIM expansion slot
Supports 1*VGA
Supports 2 x Intel WGI211AT GbE, Supports Wake-On-LAN, PXE boot
Supports 6 x RS232, COM1/2 supports 5V/12V electricity, COM3-6 supports RS485/RS422
Supports 7 x USB 2.0, 1 x SIM slot
Specification: EPC-NFD359Z
Ordering Information
Packing List
Optional Accessories
| Model No. | EPC-NFD359Z | |
| Processor System | CPU | Intel Celeron J1900 |
| Frequency | 2.0GHz-2.42GHz | |
| Core Number | 4C | |
| Chipset | SoC | |
| Fanless | Yes | |
| Memory | Technology | DDR3L 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204-pin SODIMM | |
| Graphic | Controller | Intel HD Graphic |
| VGA | 2560x1600@60HZ | |
| HDMI | - | |
| Audio | Codec | Realtek ALC662 |
| Interface | 1 x MIC | |
| Ethernet | Controller | 2 x Intel WGI211AT, supporting Wake-on-LAN, PXE boot |
| Engine | DirectX 11.1, OpenGL 3.2 | |
| Speed | 10/100/100Mpbs | |
| Interface | 2x RJ45 | |
| Storage | Type | SATAII |
| Installation | 1 x m-SATA Socket, SSD transit rate up to 6Gbps | |
| Type | SATAII | |
| Installation | 1x 2.5” HDD/SSD Drive Bay | |
| I/O | Serial Port |
6x RS232(COM1/2 Supports 5V/12V electricity, COM3-6 supports RS485/RS422), DB9 Male RS485/RS422,RS485/RS422,RS485/RS422,RS485/RS422,RS485/RS422 |
| Digital I/O | - | |
| USB 2.0 | 7x Type A | |
| USB 3.0 | - | |
| SIM | 1 x SIM slot | |
| Power-On/Reset Button | 1x Power On/Off | |
| Remote | - | |
| LED | Power/HDD | |
| Antenna Hole | 2x SMA Antenna Holes | |
| Expansion Interface | Mini PCIe | 1x Full-sized Socket |
| PCI | - | |
| PCI Express | - | |
| Watchdog Timer |
Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable |
|
| Power | Power Type | Desktop Power Adapter |
| Power Supply Voltage | 9 VDC ~ 36 VDC | |
| Connector | DC Jack, 2-pin Terminal Block | |
| Power Adapter |
AC to DC, AC 90 to 240 VAC Input, DC 12V/5A 60W or 12V/3A 36W |
|
| Environment | Operating Temperature | -10°C~60°C (with Industrial-grade Components) |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | 5%~95%, Non-condensing | |
| Vibration |
IEC 60068-2-64, 0.5Grms, Random 5~500Hz, 40 Mins/Axis |
|
| Mechanical | Dimension(W x H x D) | 200x62.5x235mm |
| Construction | Aluminum + SGCC | |
| Weight | 1.8kg | |
| Mounting | Wallmount or Desktop | |
| Software | Microsoft Windows | Windows 7, 10 |
| Linux | Ubuntu, CentOS, etc. | |
| Certification | EMC | CE,FCC Class B |
Ordering Information
| Part number | CPU | LAN | COM | USB | Wi-Fi | Power |
| EPC-NFD359Z | Celeron J1900 | 2 x 211AT | 6 | 7 | Optional | 36W/60W external adapter |
| 1 | Power cord 3P 180cm, China |
| 2 | 60W/36W external adapter |
| 3 | Driver CD |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
